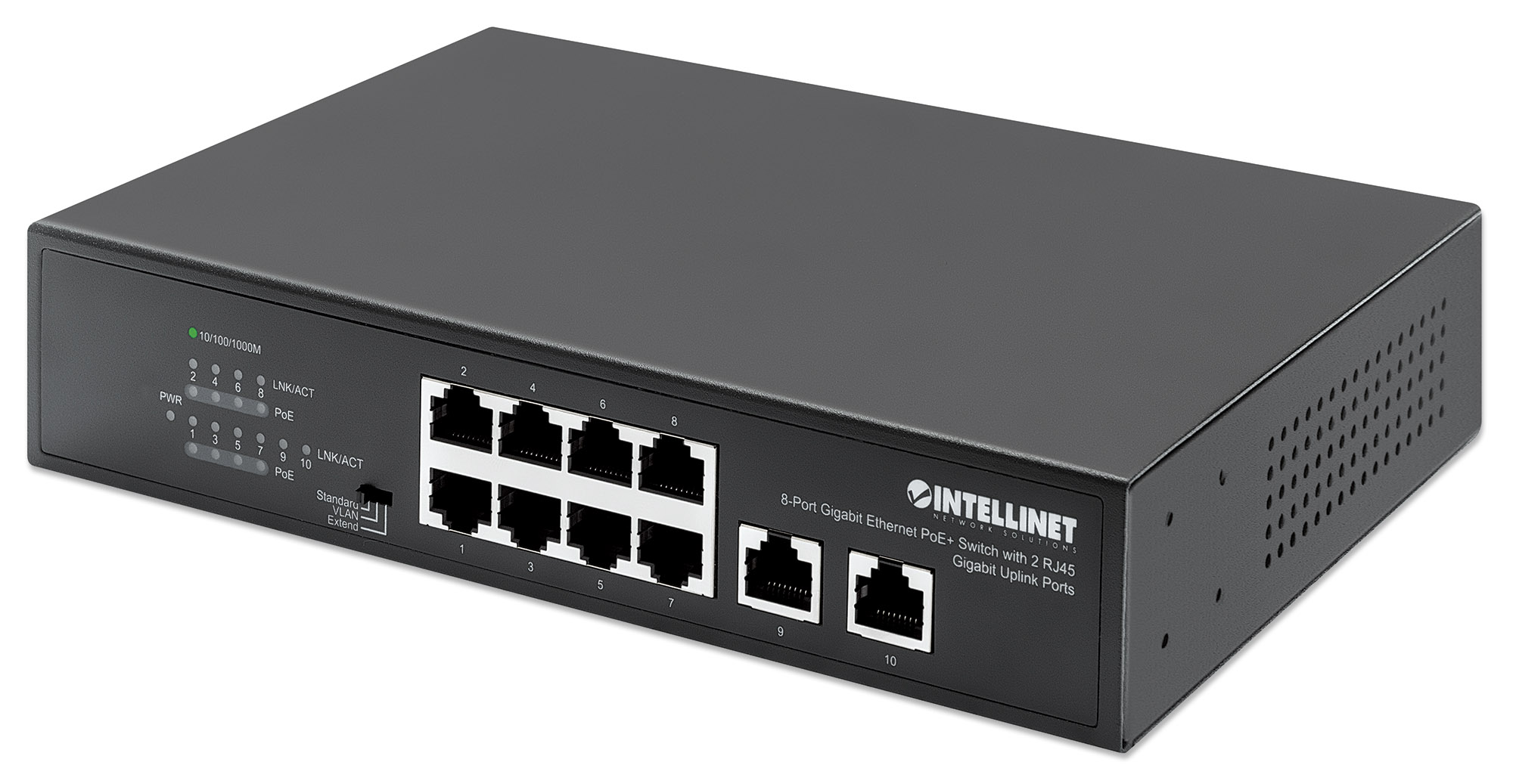

The Intellinet 8-Port Gigabit PoE+ Switch with 2 RJ45 Gigabit Uplinks is a high-performance networking solution designed to power and connect PoE-enabled devices such as IP cameras, VoIP phones, and wireless access points. Featuring 8 Gigabit PoE+ ports, it delivers fast data transmission and up to 30W of power per port. The 2 additional Gigabit uplink ports allow for seamless integration with larger network infrastructures. Ideal for businesses, offices, and security systems, the Intellinet PoE+ Switch offers reliable, efficient, and scalable connectivity for expanding your network with ease.
- Provides power and data connection for up to eight PoE network devices
- Two RJ45 Gigabit uplink ports
- PoE power budget of 120 watts
- Self-Healing Network – the Powered Device Monitor feature (PDM) restarts any connected PoE device that fails to respond or send out network traffic
- IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
- Power output up to 32 watts per port*
- Manual PoE extend mode (reduces network speed and extends PoE support to 250 m)
- Manual VLAN mode (allows ports 1 through 8 to be isolated from each other)
- 20 Gbps switch fabric
- Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (e.g., wireless access points, VoIP phones, IP cameras)
- Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
- Saves time and money by delivering data and power via existing network cables
- 10/100/1000 auto-sensing ports automatically detect optimal network speeds
- Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
- Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
- All RJ45 ports with Auto-MDIX (auto uplink) support
- Store and forward switching architecture
- IEEE 802.3x flow control for full duplex
- Supports up to 8192 MAC address entries, Auto-Learning and Auto-Aging
- Cooling fan for ventilation
- Fully NDAA-compliant
- Three-year warranty
