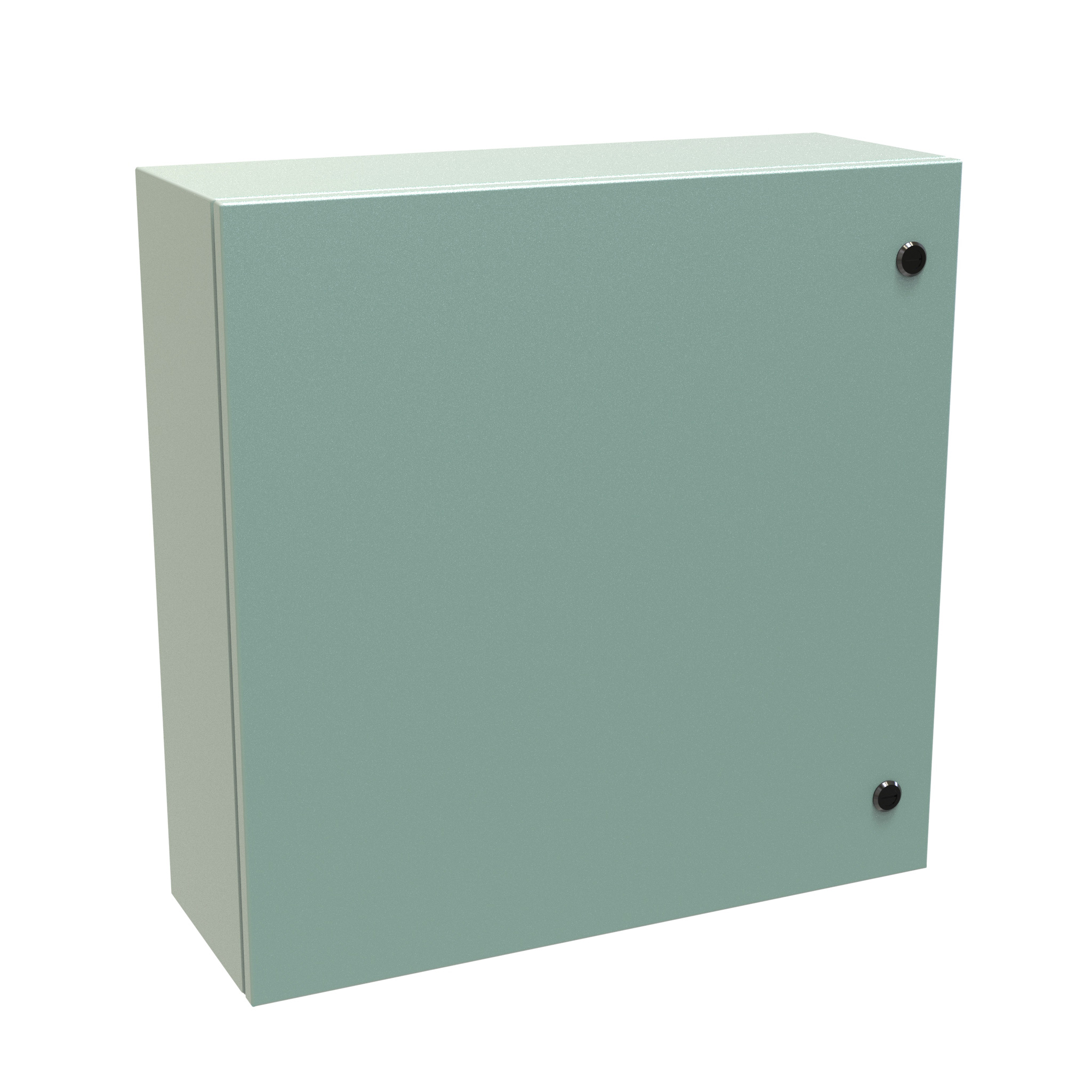

Hammond Eclipse Series 24″ Steel Outdoor Wall Mount Enclosure

The Hammond Eclipse Series 24″ Steel Outdoor Wall Mount Enclosure (EN4SD Series) is a rugged, industrial-grade cabinet engineered to protect electrical and network equipment in harsh indoor and outdoor environments. Designed to meet NEMA Type 4 and Type 12 standards, this enclosure safeguards against dust, dirt, rain, and non-corrosive liquids, making it ideal for manufacturing facilities, outdoor telecom installations, and utility infrastructure.

Constructed from formed 14 or 16-gauge steel, the enclosure features smooth, continuously welded seams that eliminate weak points and prevent environmental intrusion. The hinged door with quarter-turn latching system provides secure access, while a poured-in-place gasket ensures a tight seal to maintain internal protection.

A common configuration—24″ x 24″ x 10″—offers ample space for control panels, electrical components, and low-voltage equipment while maintaining a manageable wall-mounted footprint. The enclosure also includes bonding and grounding studs, panel mounting hardware, and removable doors, allowing for easier installation, customization, and maintenance.

Key Features

• 24″ x 24″ x 10″ enclosure size (multiple depth options available)
• NEMA 4 / 12 rated for dust-tight and water-resistant protection
• 14/16-gauge steel construction for durability in industrial environments
• Continuously welded seams for maximum environmental sealing
• Hinged door with quarter-turn latch for secure access
• Poured-in-place gasket for superior sealing performance
• Bonding and grounding studs included for safety compliance
• Compatible with Eclipse accessories (inner panels, swing frames, mounting feet)

The Hammond Eclipse Series 24″ Steel Outdoor Wall Mount Enclosure is a mid-size, high-performance enclosure that delivers serious protection without the footprint of larger cabinets. It’s ideal when you need NEMA-rated durability, clean installation, and long-term reliability in demanding environments.
