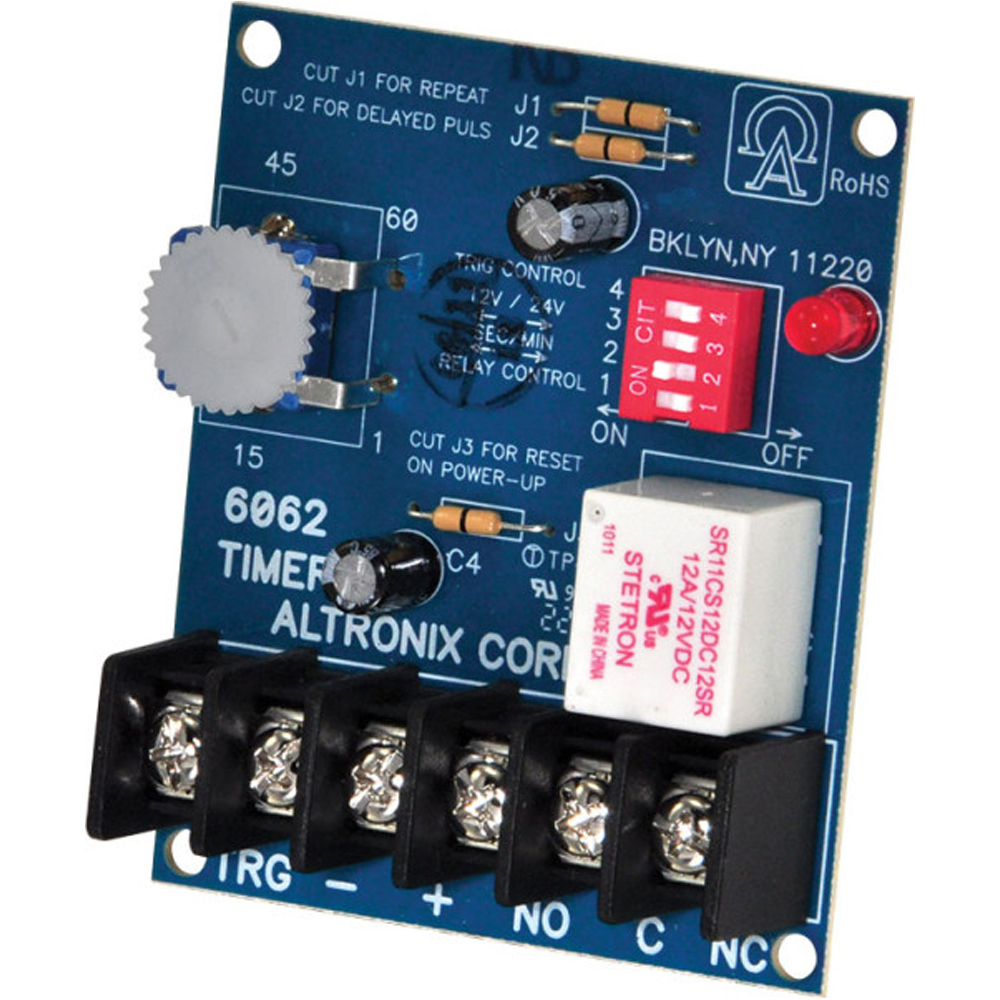

Altronix Multi-purpose 12/24vdc Timer Control Board Module

SPECIFICATIONS:

INPUT: 12VDC OR 24VDC OPERATION IS SELECTABLE.

CURRENT DRAW:
– STAND-BY: 3MA, RELAY ENERGIZED: 40MA

RELAY:
– SELECTABLE RELAY ACTIVATION AT THE START OR END OF THE TIMING CYCLE
– ONE (1) SECOND MOMENTARY RELAY ACTIVATION AT THE END OF THE TIMING CYCLE (ELIMINATES THE NEED TO USE TWO (2) TIMERS FOR THIS FUNCTION)

FEATURES:
– TRIGGERS VIA POSITIVE DC (+) VOLTAGE, DRY CONTACT CLOSURE, OR REMOVAL OF CONTACT CLOSURE
– QUICK AND EXTREMELY ACCURATE TIME RANGE ADJUSTMENT FROM 1 SECOND TO 60 MINUTES
– BUILT-IN RESET FEATURE WHICH CANCELS TIMING CYCLE
– REPEAT (FLASHER/PULSE) MODE

VISUAL INDICATORS:
– LED INDICATES RELAY IS ENERGIZED

ELECTRICAL:
– OPERATING TEMP: 0° C TO 49° C (32° F TO 120° F)
– STORAGE TEMP: – 20° C TO 70° C ( – 4° F TO 158° F)
– RELATIVE HUMIDITY 85% +/- 5%
