ELK M1 Series 16-Output Expander Module (8 Voltage + 8 Relays)

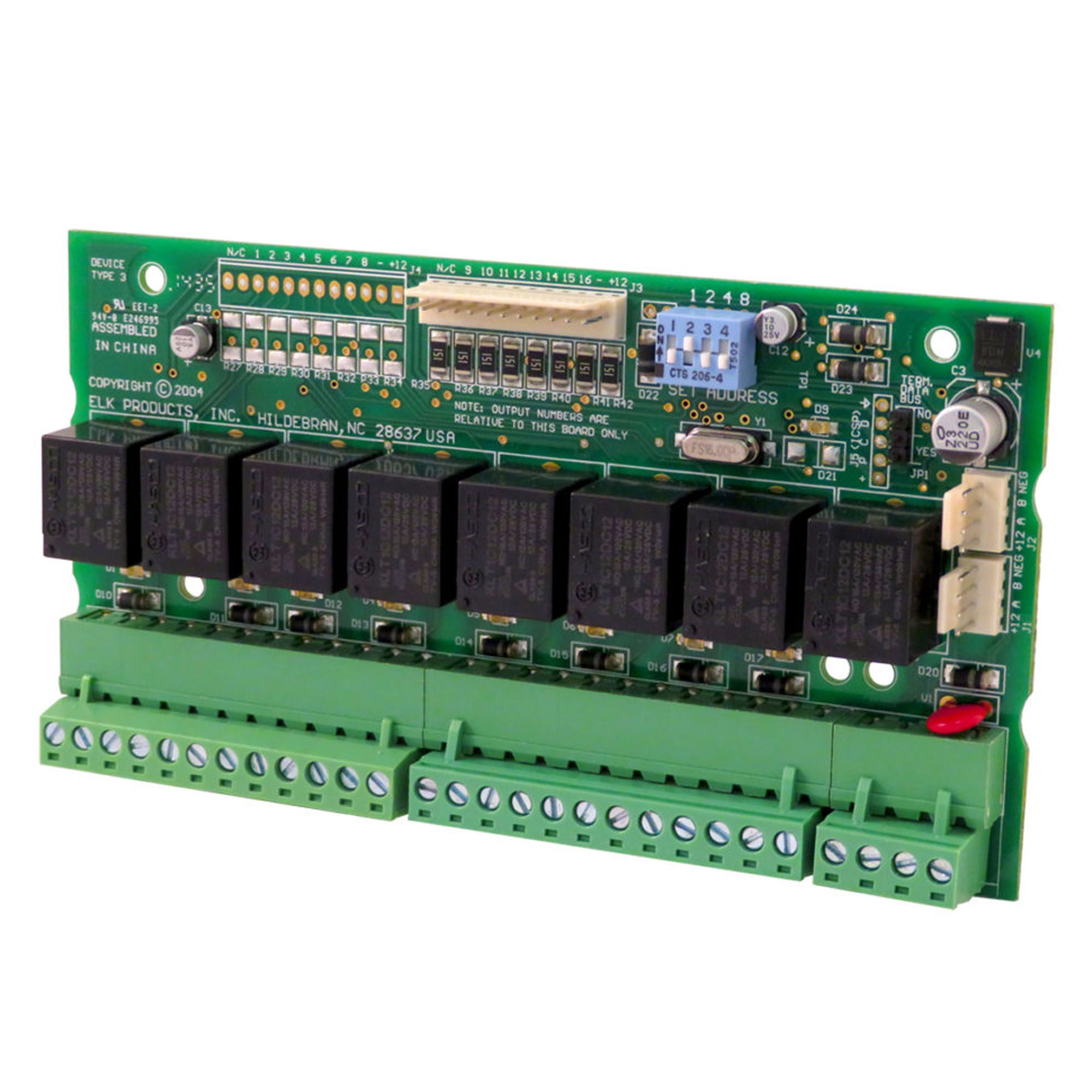

The ELK Products M1 Series 16-Output Expander Module (8 Voltage + 8 Relays) is a powerful expansion solution designed to extend the output capabilities of ELK M1 Gold and M1EZ8 security and automation control systems. Commonly known as the ELK-M1XOVR, this module adds 16 programmable outputs — including 8 voltage outputs and 8 onboard relay outputs — allowing integrators to control lighting, sirens, strobes, gates, relays, HVAC systems, automation devices, and other low voltage equipment throughout residential and commercial installations.

Designed for advanced automation and security applications, the M1XOVR operates directly from the ELK 4-wire RS-485 data bus and supports flexible system expansion without requiring complex wiring changes. The 8 voltage outputs provide 12VDC trigger capability for low-current devices, while the 8 integrated SPDT relay outputs support higher-current switching applications for connected automation and security hardware. Additional relay expansion is possible using compatible ELK M1RB relay boards.

The module features onboard diagnostic LEDs, DIP switch addressing, and multiple mounting options for structured wiring enclosures and security cabinets. Up to 12 output expander modules may be added to a single ELK M1 system, allowing large-scale automation deployments with up to 208 programmable outputs. This makes the M1XOVR ideal for smart homes, commercial automation systems, access control, energy management, alarm notification, and custom integration projects.

Key Features

• Adds 16 programmable outputs to ELK M1 Gold and M1EZ8 systems
• Includes 8 voltage outputs and 8 onboard SPDT relay outputs
• Voltage outputs provide 12VDC triggering for low-current devices
• Relay outputs rated up to 7A @ 28VDC or 10A @ 125VAC
• Operates from the ELK 4-wire RS-485 data bus
• Supports lighting, sirens, strobes, gates, HVAC, relays, and automation devices
• DIP switch addressing for flexible multi-module installations
• Diagnostic status LEDs simplify installation and troubleshooting
• Compatible with ELK M1RB relay expansion boards
• Up to 12 expanders supported per system for up to 208 total outputs
• Ideal for residential, commercial, and industrial automation systems

Expand automation flexibility and increase programmable control capacity with the ELK M1 Series 16-Output Expander Module — the professional solution for advanced security, smart building, and low voltage control system integration.
