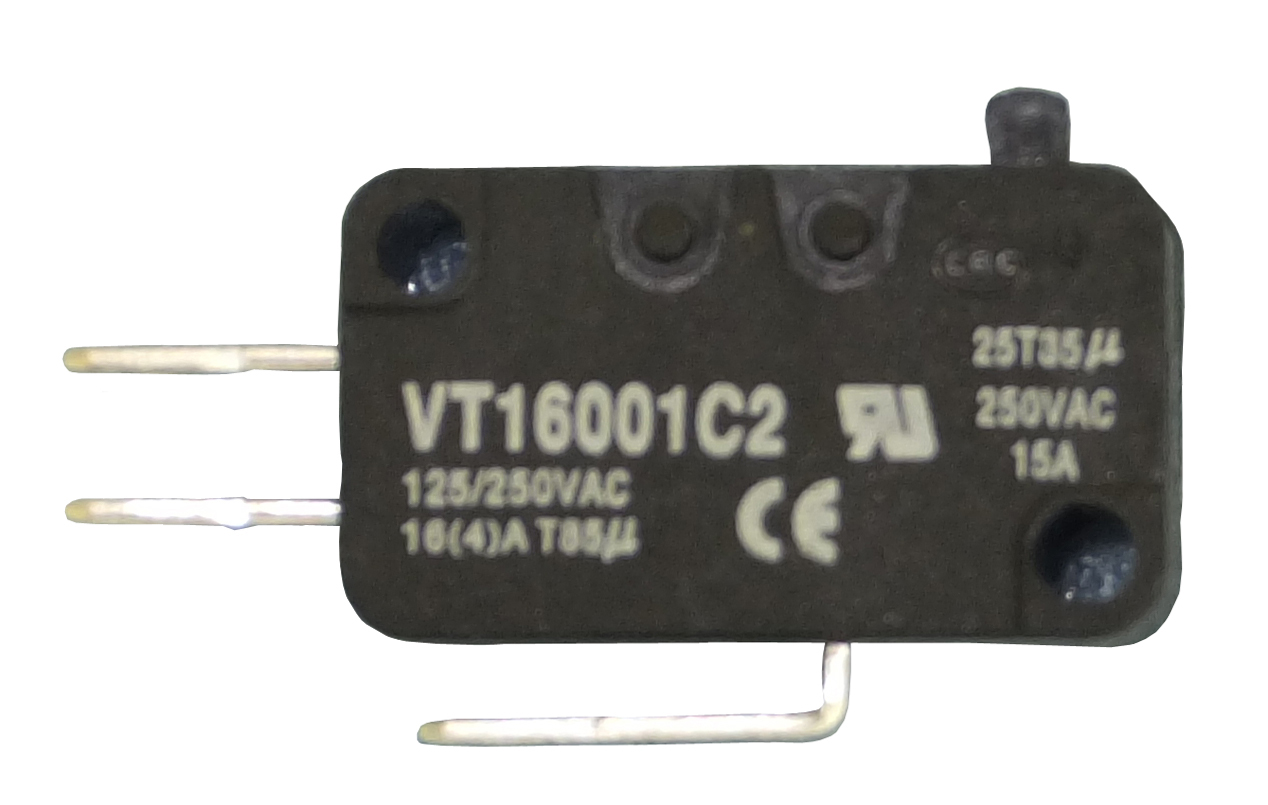

Philmore 125VAC/16A Miniature Snap-Action Pin Plunger Switch with .187″ Quick Connect Terminals | Momentary
The Philmore 125VAC/16A Miniature Snap-Action Pin Plunger Switch (Momentary) is a compact limit switch designed for precise mechanical activation in electrical and electronic systems. Rated for 125 volts AC and up to 16 amps, this snap-action switch delivers fast and reliable switching performance when the plunger actuator is pressed.
The pin plunger actuator is designed to be triggered by direct contact with moving components, making it ideal for applications such as door detection, limit sensing, machine position monitoring, and automated equipment control. The momentary snap-action mechanism ensures the switch changes state instantly when the plunger is pressed and automatically returns to its original position when released.
Equipped with .187″ quick connect terminals, the switch allows for quick and secure wiring using standard push-on connectors, simplifying installation and maintenance. Its miniature form factor allows it to fit easily into compact equipment housings and mechanical assemblies while providing dependable switching performance.
This type of snap-action switch is commonly used in appliances, industrial machinery, automation systems, safety interlocks, vending machines, and electronic equipment, where reliable momentary switching and precise mechanical triggering are required.
Key Features
- 125VAC / 16A electrical rating
- Snap-action pin plunger actuator for precise mechanical activation
- Momentary operation returns to default position when released
- .187″ quick connect terminals for fast wiring connections
- Compact miniature design for tight installations
- Ideal for limit switches, automation equipment, appliances, and machinery
The Philmore 125VAC/16A Miniature Snap-Action Pin Plunger Switch delivers reliable momentary switching for automation, safety interlocks, and mechanical control applications.
