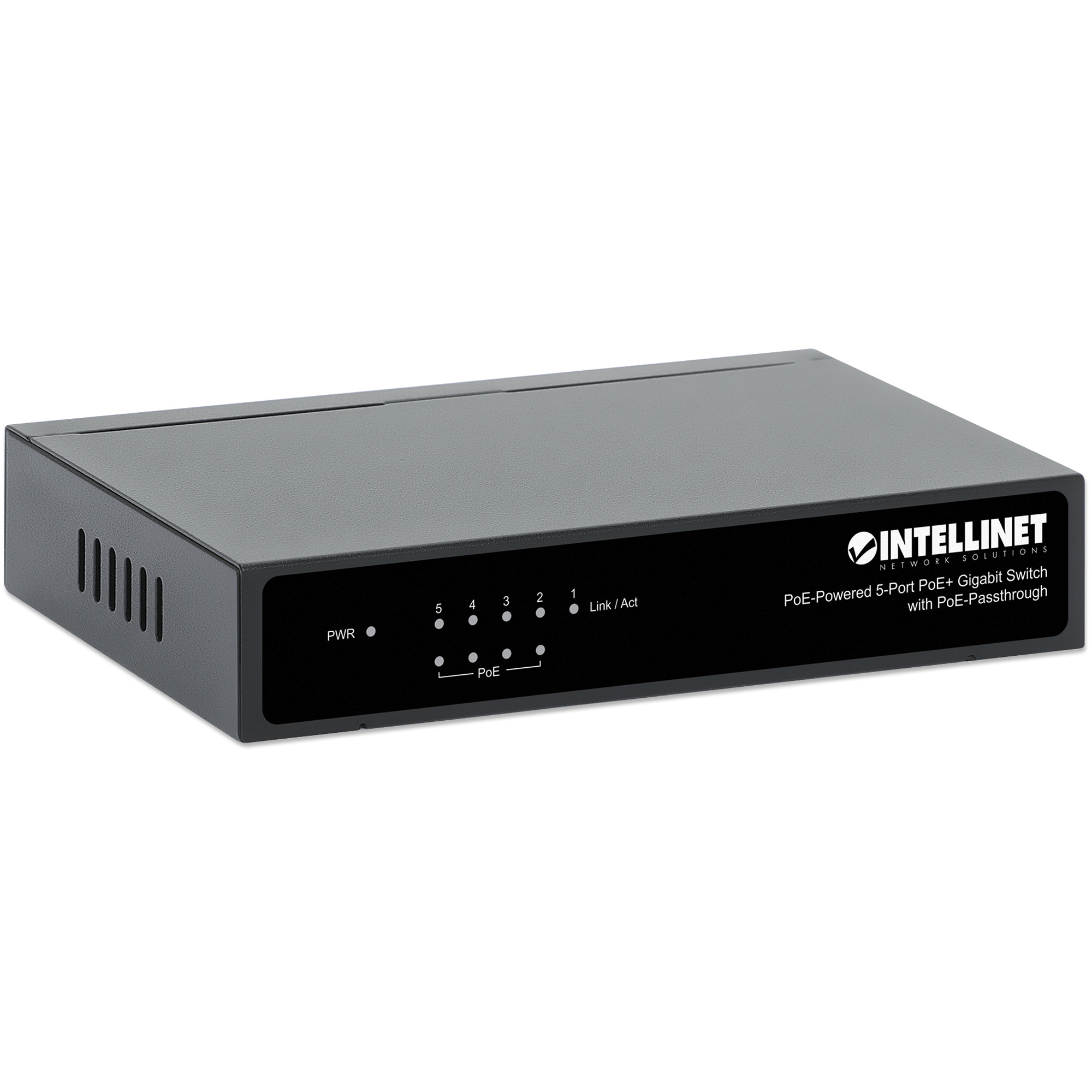

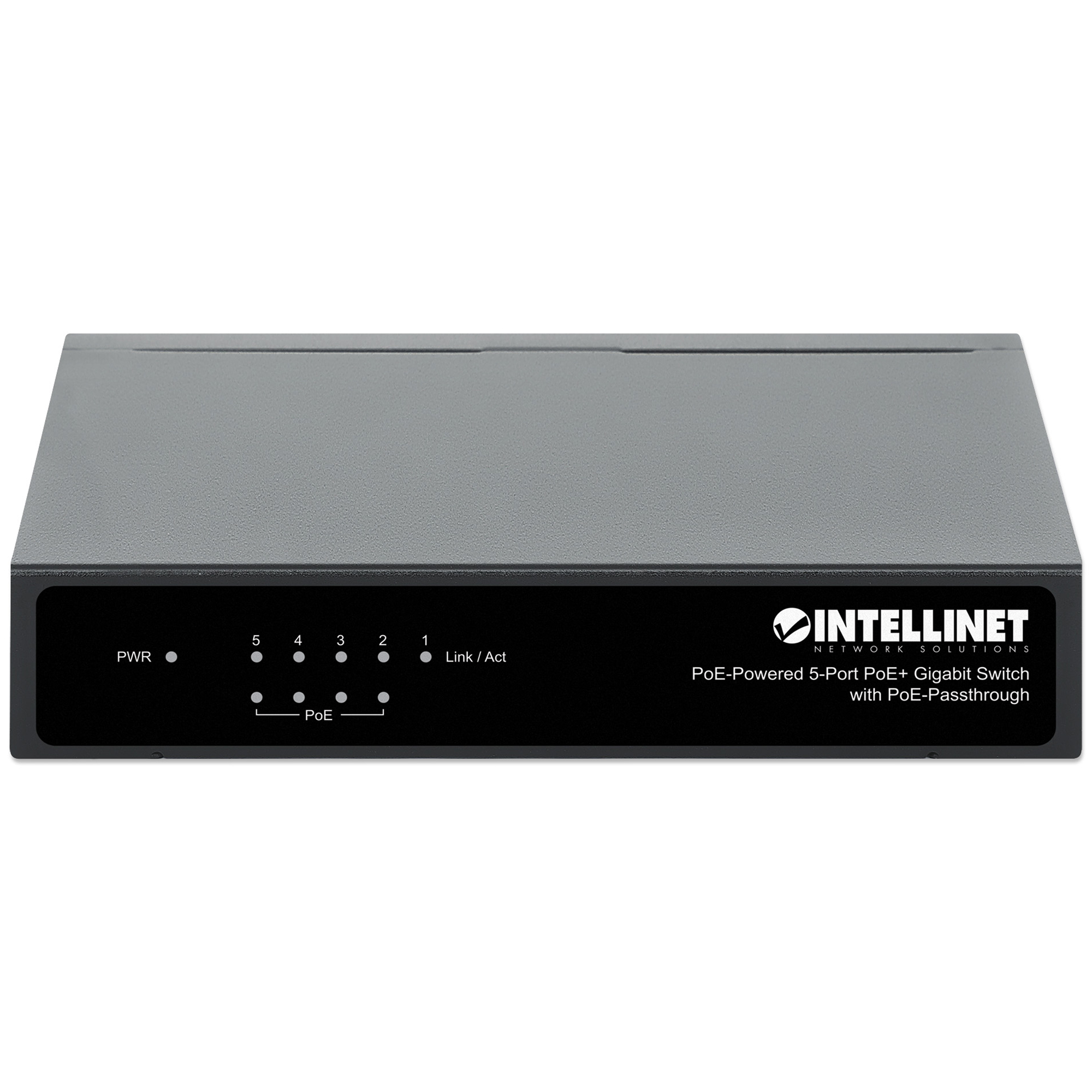

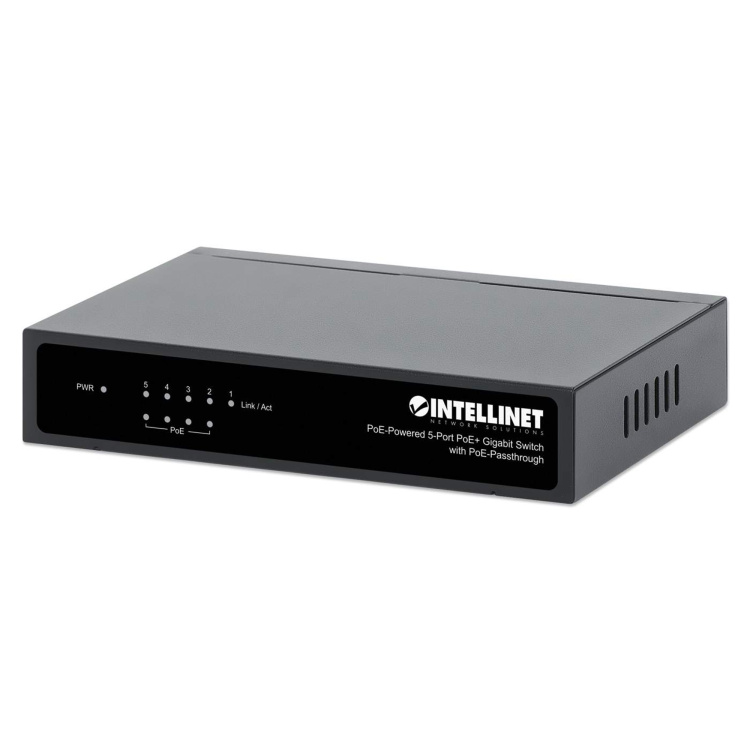

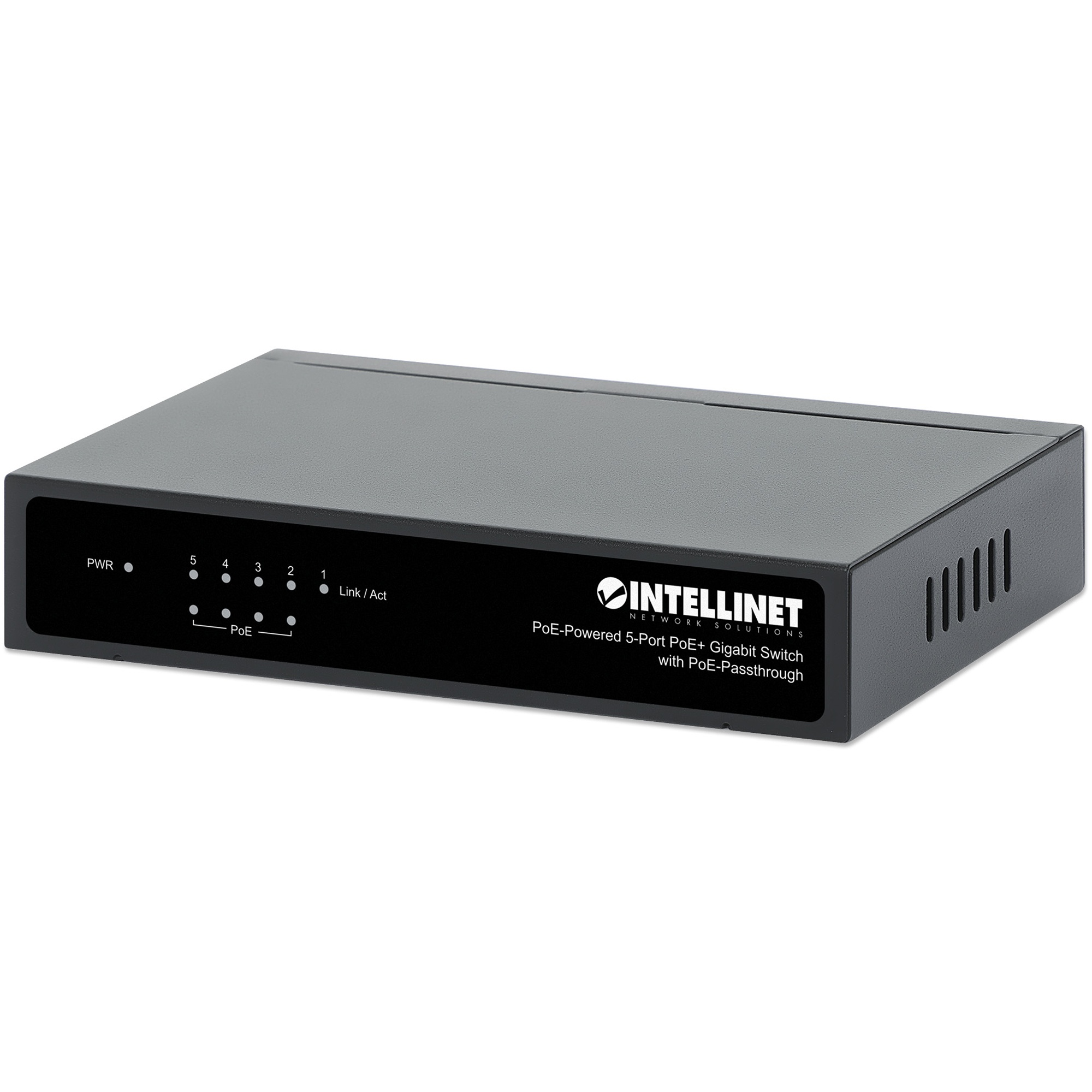

The Intellinet 5-Port PoE Powered Gigabit Switch with PoE Passthrough is a versatile networking solution designed to expand your network without the need for additional power outlets. This switch features five Gigabit ports, with one port powered by PoE and the ability to pass PoE power to connected devices such as IP cameras, wireless access points, and VoIP phones. Ideal for small office networks, security systems, and remote installations, the Intellinet PoE-powered switch offers efficient data transmission and power distribution, simplifying network expansion while minimizing the need for extra cables and power supplies.
- Receives power from a PoE injector or PoE switch and provides power to up to four PoE network devices
- Doubles the connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.)

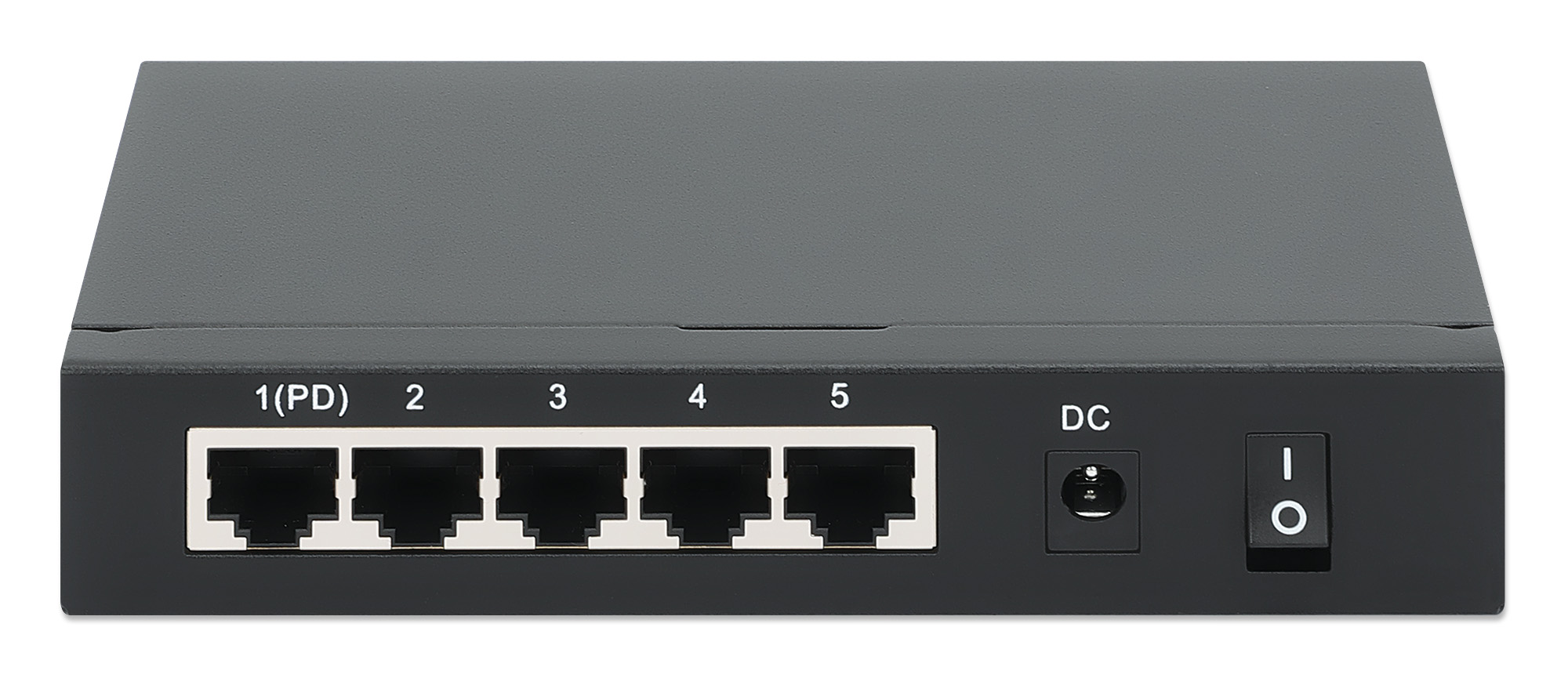

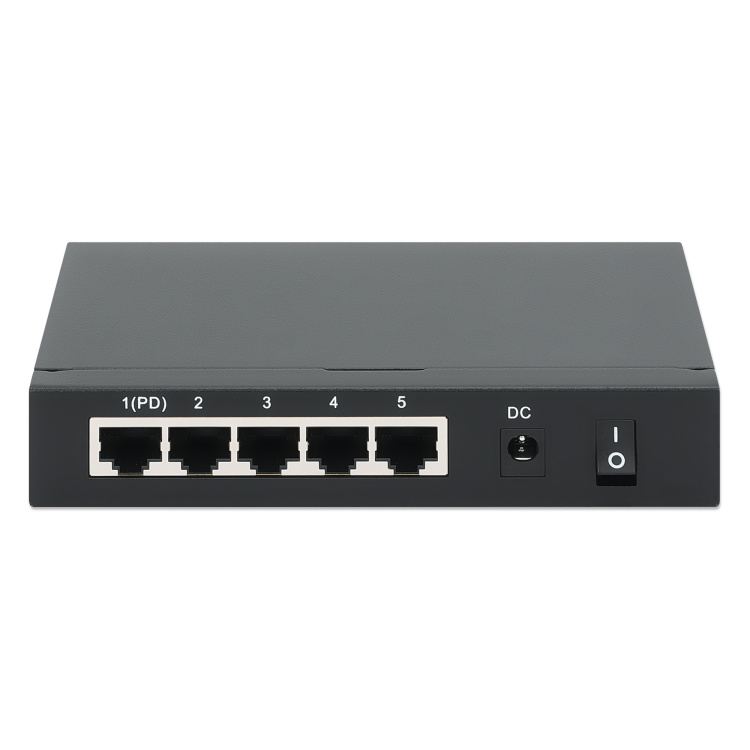

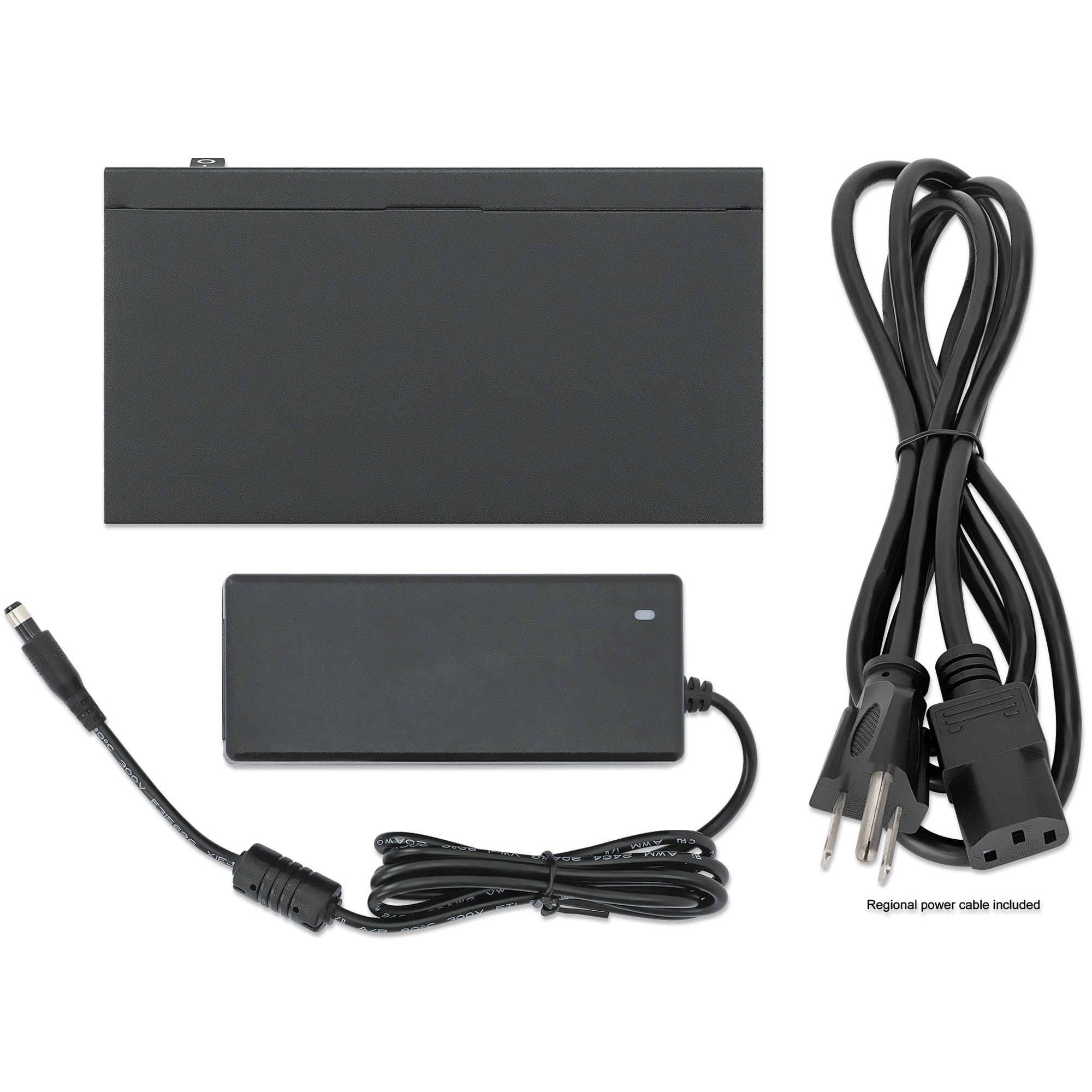

- Can be powered via PoE or the included power adapter
- Total power budget of 60 watts when using AC power
- Total power budget of 26 watts when powered via PD input port
- Power output up to 30 watts per port
- IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
- Saves installation costs by delivering data and power over existing network cables
- Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (e.g., wireless access points, VoIP phones, IP cameras)
- Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
- 10 Gbps switch fabric
- Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
- Green Ethernet power-saving technology that deactivates unused ports and adjusts power levels based on the cable length
- 10/100/1000 auto-sensing ports automatically detect optimal network speeds
- All RJ45 ports with Auto-MDIX (auto uplink) support
- Store and forward switching architecture
- IEEE 802.3x flow control for full duplex
- Supports up to 2048 MAC address entries
- Buffer memory of 1.5 MBits
- Compact desktop format with rugged metal housing
- Fanless design for silent operation

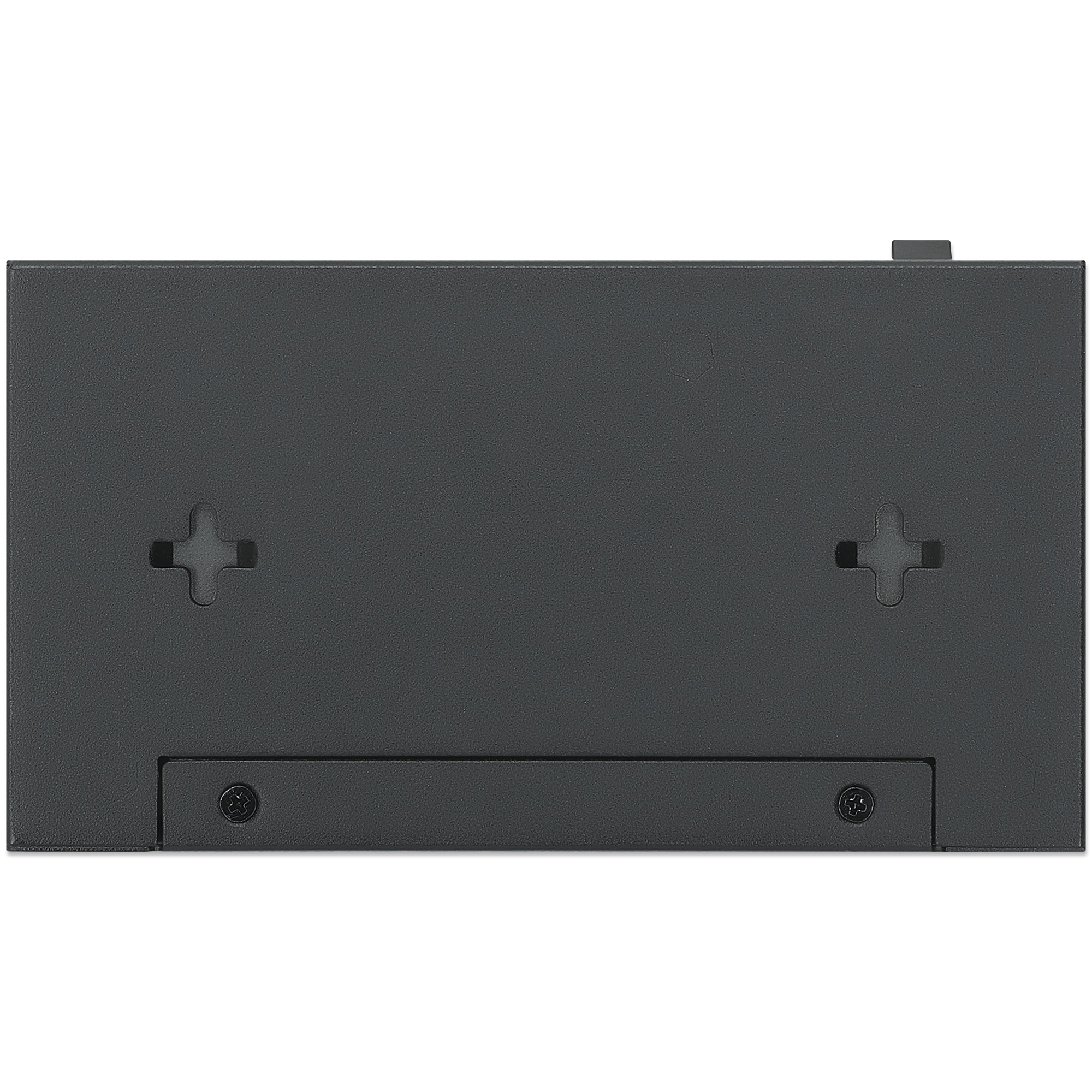

- Mounting holes for wall mounting
- Fully NDAA-compliant
- Three-year warranty
