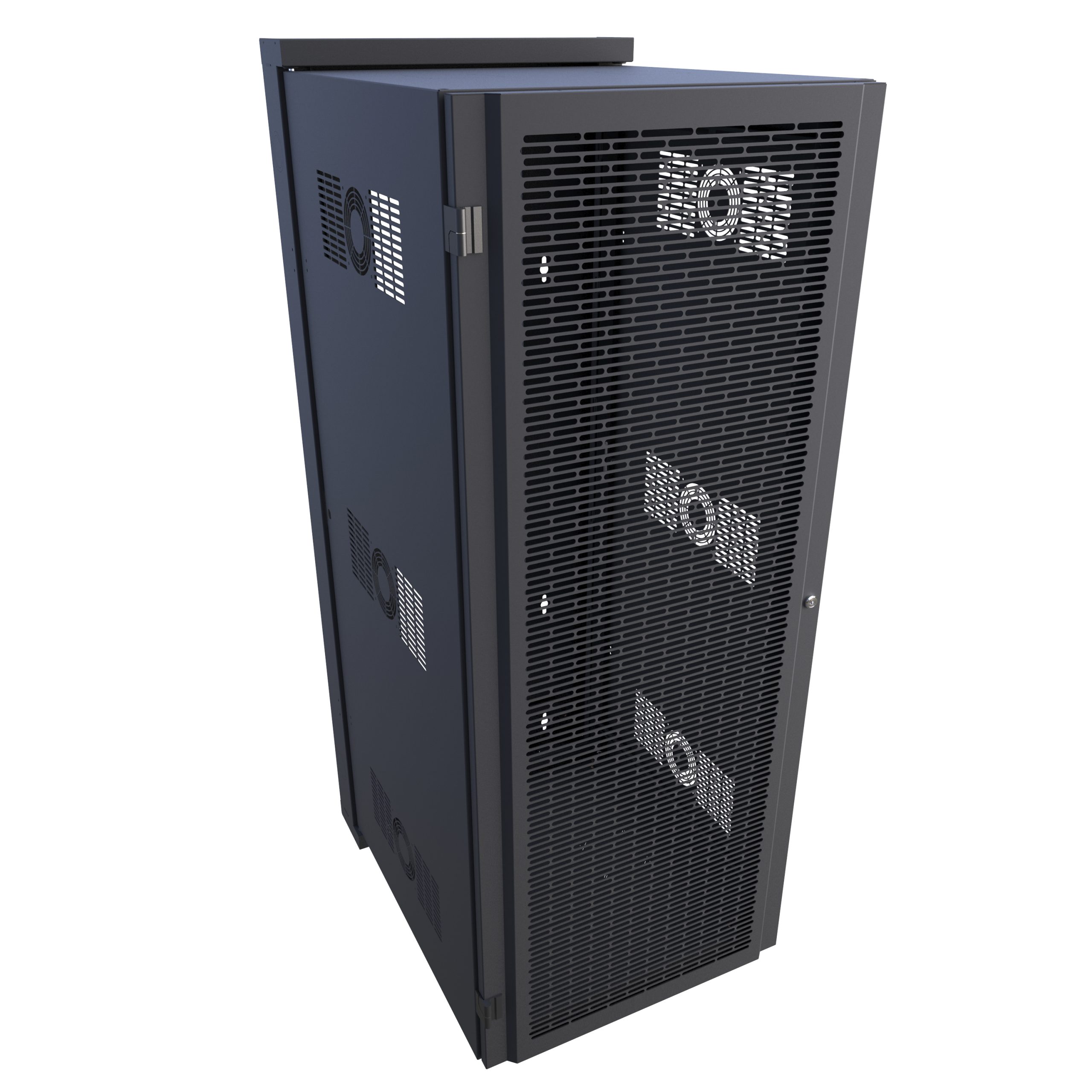

The Hammond 32U HWM Series Swing-Out Seismic Wallmount Cabinet is a high-capacity, seismic-rated enclosure designed for securely housing critical IT and networking equipment in data centers, offices, and network closets. With 32U of rack space, this robust cabinet features a swing-out design for easy access to equipment, enhancing maintenance and cable management. Built to withstand seismic activity, it offers exceptional stability and protection for sensitive devices. Ideal for environments requiring both accessibility and security, the Hammond HWM Series Wallmount Cabinet ensures professional-grade organization and durability.
- 14-gauge welded rear section; 16-gauge center section and doors.
- EIA-compliant adjustable depth mounting rails.
- Grounding lugs are located on the top and bottom of the door, center, and rear sections.
- UL Listed 2416 load rated to 350 lbs (158 kg).
- Seismic rated up to 200 lbs (90.72 kg) of dynamic load with an Ip factor of 1.5 in accordance with the IBC 2018, CBC 2019, NBC 2018, ASCE 7-16, and ASCE 7-10.
- Finished in sand-textured RAL9005 black or textured RAL9003 white powder coat.
- TAA-compliant for GSA Schedule purchases.
- RoHS Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
- Rack Units: 32
- Rack Type: Enclosed Wall Rack
- Paint Color: RAL9005 Black
- Rail Type: Tapped 10-32
- Height: 62.75 in
- Width: 24.68 in
- Depth: 31.7 in
