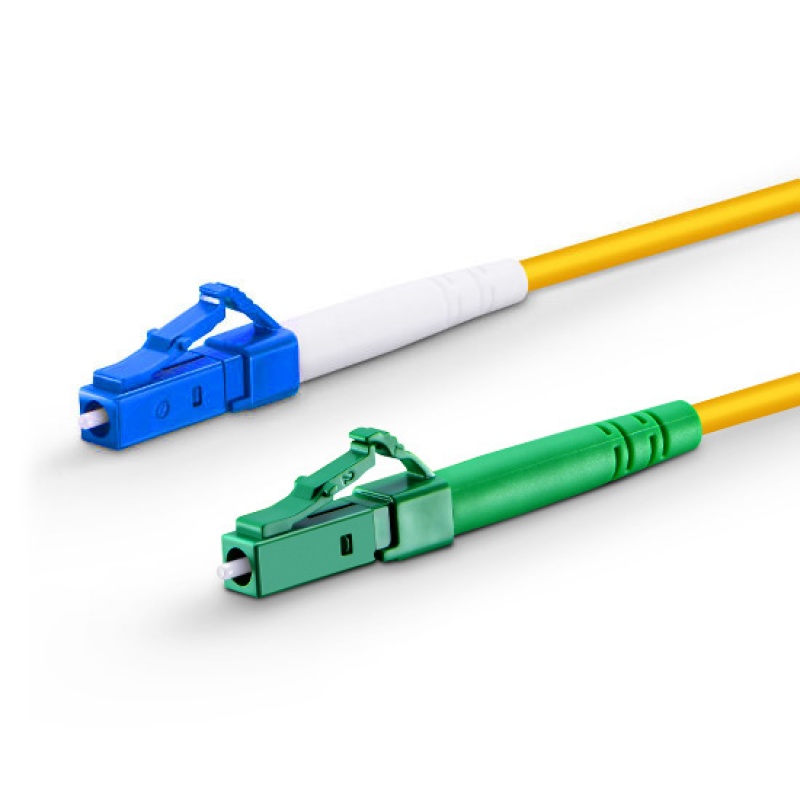

The LC-APC/LC-UPC Simplex Singlemode Fiber Patch Cable is a high-performance fiber optic solution designed for precise data transmission in long-distance networks. Featuring LC-APC (Angled Physical Contact) and LC-UPC (Ultra Physical Contact) connectors, this simplex patch cable ensures low insertion loss and optimal signal quality, making it ideal for telecommunications, data centers, and high-speed network applications. The singlemode fiber supports unidirectional communication, providing reliable connectivity for critical network infrastructure. Perfect for IT professionals and network installers, the LC-APC/LC-UPC Simplex Singlemode Fiber Patch Cable delivers dependable performance and seamless integration for advanced networking needs.
- Connector A: LC UPC Simplex
- Connector B: LC APC Simplex
- Fiber Count: 1 Fiber
- Fiber Grade: G.657.A1 (Compatible with G.652.D)
- Fiber Mode: OS2 9/125μm
- Wavelength: 1310/1550nm
- RoHS Compliancy Status: Compliant
- Cable Type: Tight-Buffered
- Cable Outside Diameter (OD): 2.0mm
- Cable Jacket: Riser (OFNR)
- Bend Radius (Optical Fiber): 10mm
- Bend Radius (Fiber Cable): 10/5D (Dynamic/Static)
- Connector Durability: 1000 times
- Tensile Strength (Long/Short Term): 60/100N
- Insertion Loss: ≤0.3dB
- Return Loss: UPC≥50dB, APC≥60dB
- Attenuation at 1310 nm: 0.36dB/km
- Attenuation at 1550 nm: 0.22dB/km
- Operating Temperature: -20 to 70°C (-4 to 158F)
- Storage Temperature: -40 to 80°C (-40 to 176F)
