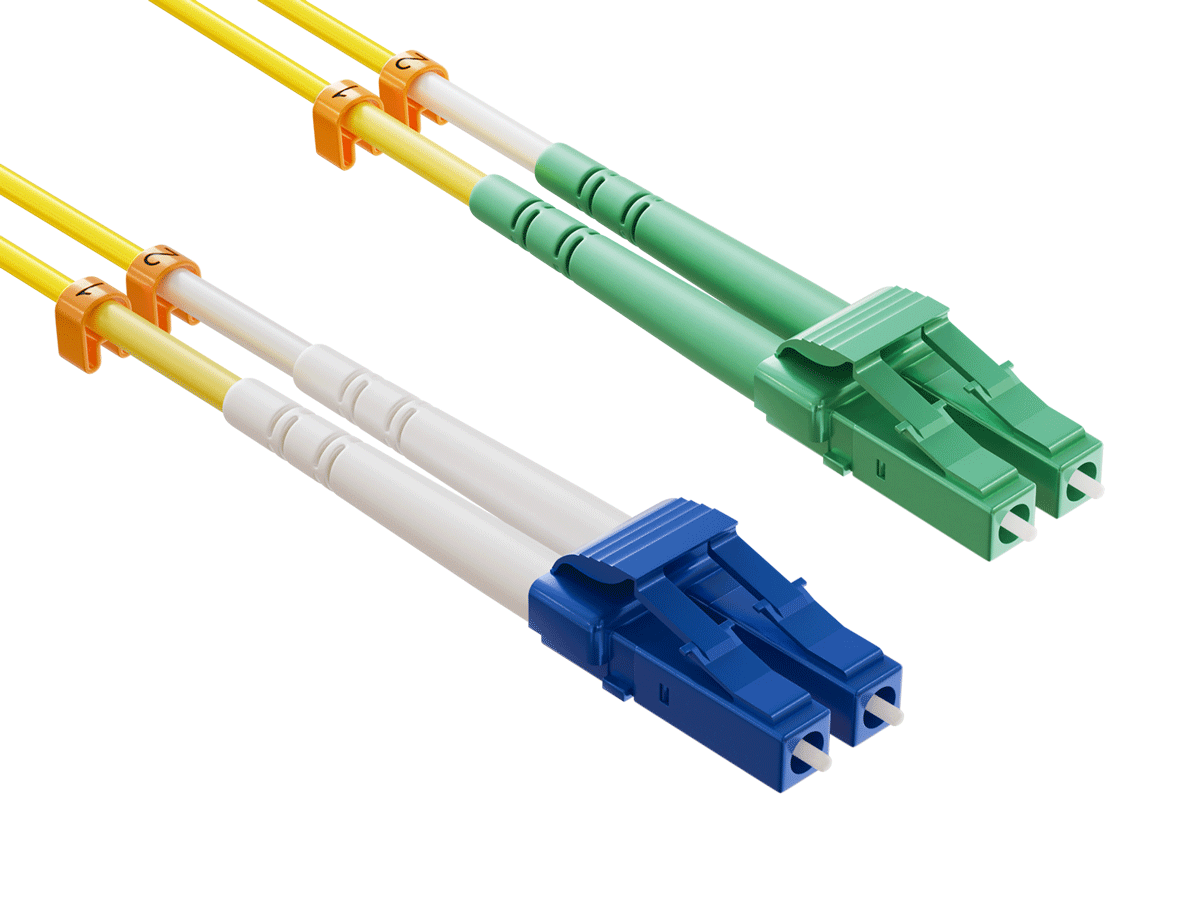

LC-APC/LC-UPC Duplex Singlemode Fiber Patch Cable | 1 Meter

$4.99

  • Connector A: LC UPC Duplex
  • Connector B: LC APC Duplex
  • Fiber Count: 2 Fibers
  • Fiber Grade: G.657.A1 (Compatible with G.652.D)
  • Fiber Mode: OS2 9/125μm
  • Wavelength: 1310/1550nm
  • Polarity: A (Tx) to B (Rx)
  • Cable Type: Tight-Buffered
  • Cable Outside Diameter (OD): 2.0mm
  • Cable Jacket: Riser (OFNR)
  • Bend Radius (Optical Fiber): 10mm
  • Bend Radius (Fiber Cable): 10/5D (Dynamic/Static)
  • Connector Durability: 1000 times
  • Tensile Strength (Long/Short Term): 90/150N
  • Insertion Loss: ≤0.3dB
  • Return Loss: UPC≥50dB, APC≥60dB
  • Attenuation at 1310 nm: 0.36dB/km
  • Attenuation at 1550 nm: 0.22dB/km
  • Operating Temperature: -20 to 70°C (-4 to 158F)
  • Storage Temperature: -40 to 80°C (-40 to 176F)

Out of stock

SKU: CCFJ-LCALCUDS01M Categories: ,

The LC-APC/LC-UPC Duplex Singlemode Fiber Patch Cable is a high-quality solution for efficient data transmission in long-distance and high-speed networks. Featuring LC-APC (Angled Physical Contact) and LC-UPC (Ultra Physical Contact) connectors, this duplex cable ensures low insertion loss and excellent signal integrity. Designed for bidirectional communication, it is ideal for telecommunications, data centers, and enterprise network applications. Perfect for IT professionals and network installers, the LC-APC/LC-UPC Duplex Singlemode Fiber Patch Cable provides reliable performance and optimal connectivity for critical network infrastructure.

  • Connector A: LC UPC Duplex
  • Connector B: LC APC Duplex
  • Fiber Count: 2 Fibers
  • Fiber Grade: G.657.A1 (Compatible with G.652.D)
  • Fiber Mode: OS2 9/125μm
  • Wavelength: 1310/1550nm
  • Polarity: A (Tx) to B (Rx)
  • Cable Type: Tight-Buffered
  • Cable Outside Diameter (OD): 2.0mm
  • Cable Jacket: Riser (OFNR)
  • Bend Radius (Optical Fiber): 10mm
  • Bend Radius (Fiber Cable): 10/5D (Dynamic/Static)
  • Connector Durability: 1000 times
  • Tensile Strength (Long/Short Term): 90/150N
  • Insertion Loss: ≤0.3dB
  • Return Loss: UPC≥50dB, APC≥60dB
  • Attenuation at 1310 nm: 0.36dB/km
  • Attenuation at 1550 nm: 0.22dB/km
  • Operating Temperature: -20 to 70°C (-4 to 158F)
  • Storage Temperature: -40 to 80°C (-40 to 176F)
Weight 0.100 lbs
