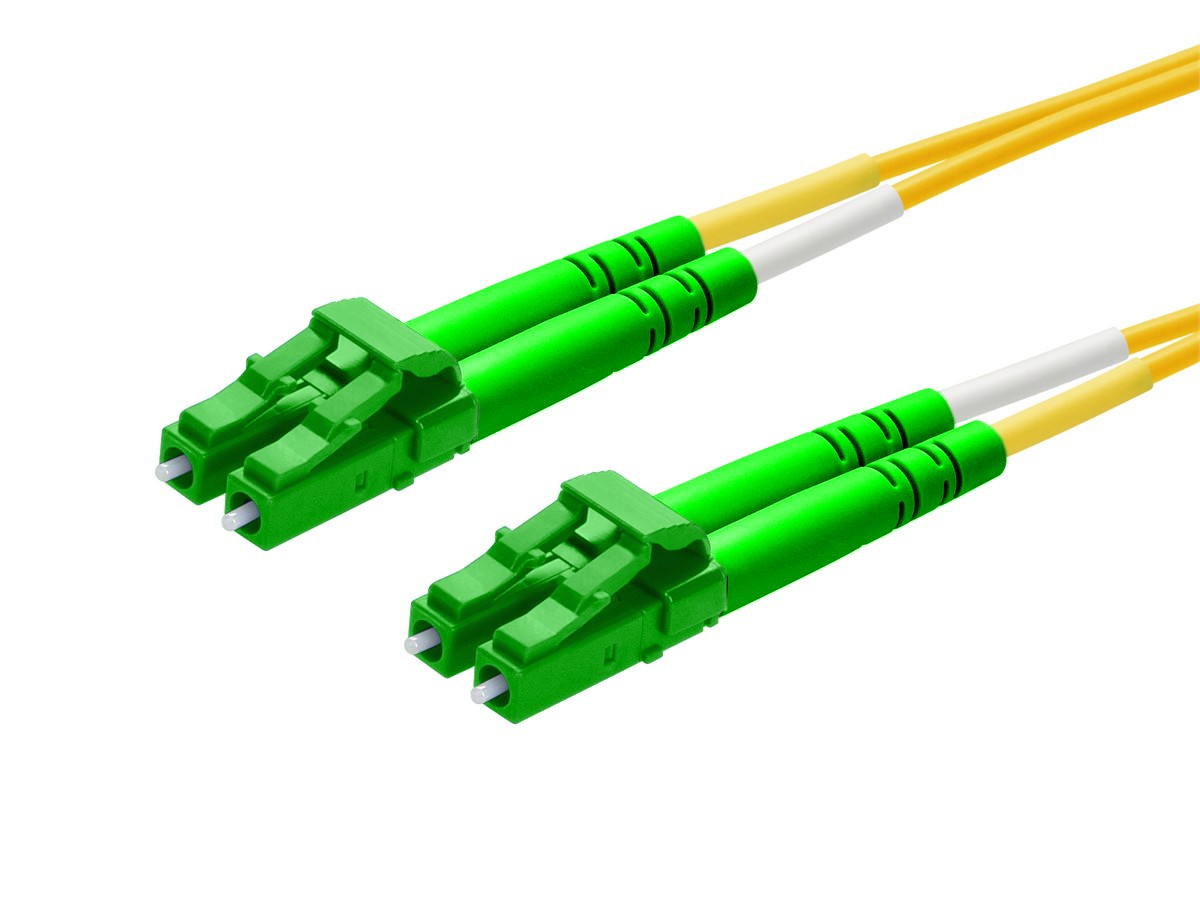

The LC-APC/LC-APC Duplex Singlemode Fiber Patch Cable is a top-quality solution for high-speed data transmission over long distances. Featuring LC-APC (Angled Physical Contact) connectors on both ends, this duplex cable ensures low insertion loss and superior signal integrity, making it ideal for telecommunications, data centers, and enterprise networks. The duplex design supports bidirectional communication, providing reliable connectivity for mission-critical applications. Perfect for IT professionals and network installers, the LC-APC/LC-APC Duplex Singlemode Fiber Patch Cable delivers dependable performance and optimal network efficiency for advanced networking needs.
- Connector A: LC APC Simplex
- Connector B: LC APC Simplex
- Fiber Count: 1 Fiber
- Fiber Grade: G.657.A1 (Compatible with G.652.D)
- Fiber Mode: OS2 9/125μm
- Wavelength: 1310/1550nm
- RoHS Compliancy Status: Compliant
- Cable Type: Tight-Buffered
- Cable Outside Diameter (OD): 2.0mm
- Cable Jacket: Riser (OFNR)
- Bend Radius (Optical Fiber): 10mm
- Bend Radius (Fiber Cable): 10/5D (Dynamic/Static)
- Connector Durability: 1000 times
- Tensile Strength (Long/Short Term): 60/100N
- Insertion Loss: ≤0.3dB
- Return Loss: ≥60dB
- Attenuation at 1310 nm: 0.36dB/km
- Attenuation at 1550 nm: 0.22dB/km
- Operating Temperature: -20 to 70°C (-4 to 158F)
- Storage Temperature: -40 to 80°C (-40 to 176F)
