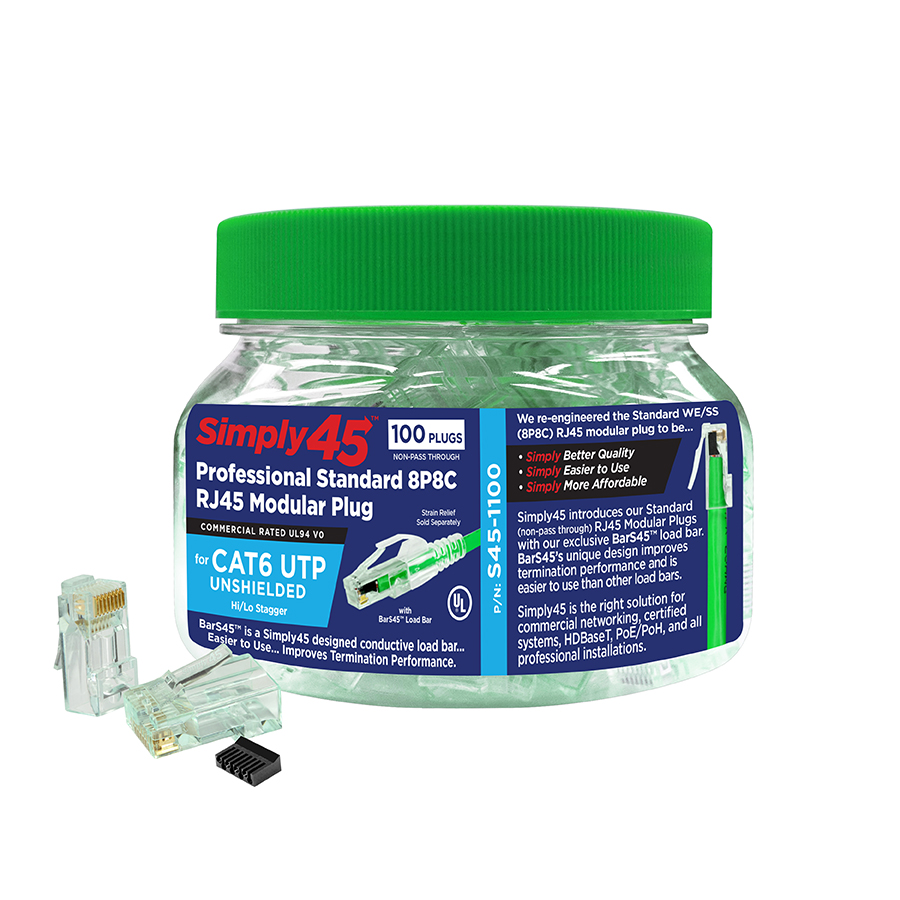

Simply45 Cat6/6A Standard RJ45 Plugs with Bar45 | 100 Pack

Simply45 Cat6/6A Standard RJ45 Plugs with Bar45 | 100 Pack

The Simply45 Cat6/6A Standard RJ45 Plugs with Bar45 | 100 Pack are professional-grade modular connectors designed for terminating unshielded Cat6 and Cat6A Ethernet cables in structured cabling installations. These standard (non-pass-through) RJ45 plugs feature the Simply45 Bar45® load bar system, which helps organize the conductors before termination to maintain proper twisted-pair geometry and improve signal performance.

The Bar45 load bar is engineered to provide better signal isolation and reduced internal crosstalk, helping installers achieve consistent, high-performance cable terminations in Gigabit and 10-Gigabit network environments.

Each connector features 50-microinch 24-karat gold-plated 3-prong contacts, creating three points of contact with the copper conductor for improved electrical conductivity and stronger wire retention compared to traditional two-prong RJ45 connectors.

These connectors are optimized for 23-AWG solid Cat6 or Cat6A UTP LAN cables, supporting cable outer diameters up to approximately 7.4 mm (0.29″). Their internal design allows the cable jacket to insert further into the connector, reducing untwisted pair length and improving NEXT (Near-End Crosstalk) performance for reliable network connectivity.

Constructed with commercial-rated UL94-V0 materials, these RJ45 plugs are suitable for plenum, riser, and LSZH structured cabling installations. Packaged in a 100-piece jar, they are ideal for network technicians, AV integrators, and low-voltage contractors building Ethernet patch cables or performing high-volume cable terminations.

Key Features

• Standard RJ45 modular plugs for Cat6 and Cat6A UTP Ethernet cables
• Bar45® load bar improves conductor alignment and signal integrity
• 3-prong 24-karat gold-plated contacts for strong electrical performance
• Designed for 23-AWG solid LAN cables up to ~7.4 mm OD
• Helps reduce crosstalk and maintain twisted-pair geometry
• Compatible with Gigabit and 10GBase-T Ethernet networks
• UL94-V0 commercial-rated materials for structured cabling installations
• 100-pack jar ideal for professional installers and contractors

Achieve consistent, high-performance Ethernet terminations with the Simply45 Cat6/6A Standard RJ45 Plugs with Bar45 (100 Pack)—order today to build reliable Cat6 network connections for your next installation.
