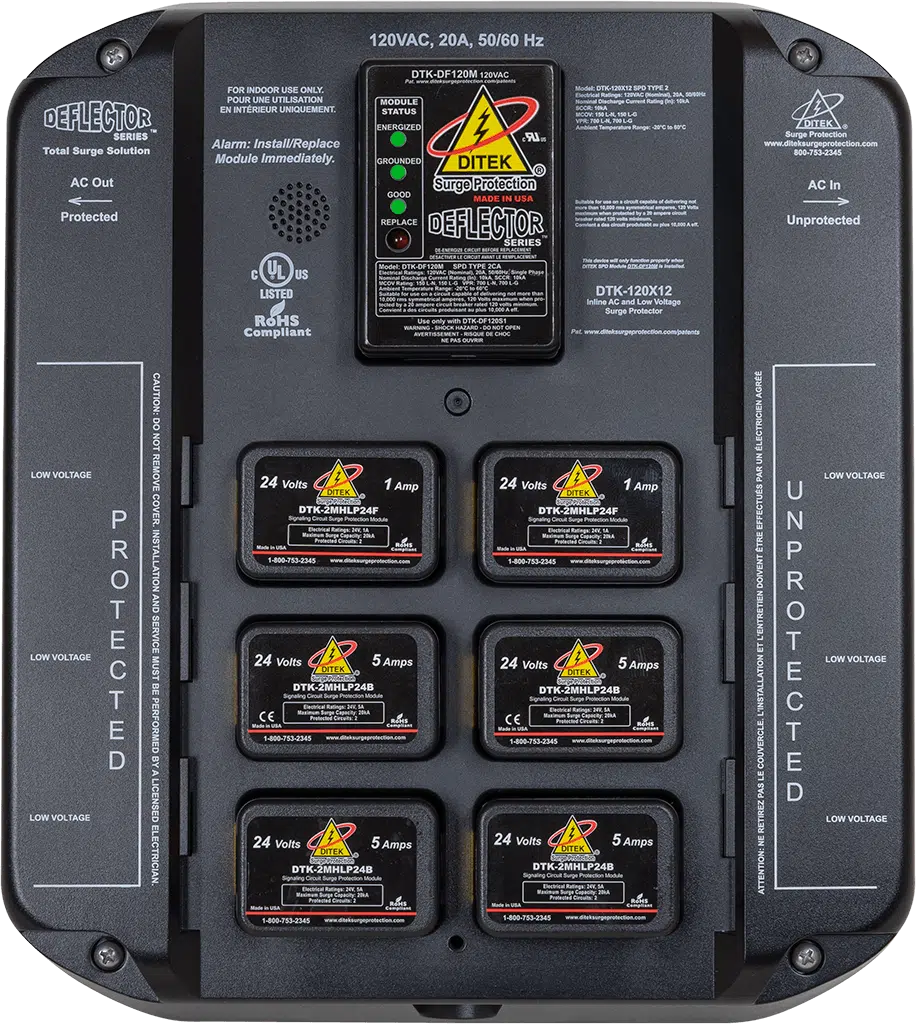

Ditek Deflector Series 120v Low Voltage Modular Surge Protective Device

THE DTK-120X12 IS A VISUAL, AUDIBLE, SMART 120VAC AND LOW VOLTAGE SURGE PROTECTOR. IT WILL PROTECT YOUR SYSTEM POWER AND UP TO TWELVE PAIRS OF SLC, IDC/PIV, NAC, NETWORK OR DIALER CIRCUITS. THIS COMBO UNIT COMES EQUIPPED WITH A DTK-DF120M, 120VAC, REPLACEABLE SURGE PROTECTION MODULE AND A 6-POSITION MOUNTING BASE FOR REPLACEABLE LOW VOLTAGE SURGE MODULES. ADDING DITEK’S 2MHLP/2MHTP MODUELS FOR DATA/SIGNAL AND DIALER CIRCUIT PROTECTION PROVIDES A COMPLETE SOLUTION FOR YOUR FIRE ALARM SYSTEM.

FEATURES:

– 120VAC POWER SURGE PROTECTION WITH AUDIBLE ALARM AND FORM C DRY CONTACTS
– REMOTE MONITORING OF SURGE PROTECTION STATUS
– 6 POSITION MOUNTING BASE FOR 2MHLP/2MHTP MODULES
– AUDIBLE ALARM CAN BE SILENCED VIA TIME DELAY SWITCH (INCLUDED)
– 3/4″ NPT PRE-DRILLED HOLES FOR AC POWER CONDUIT
– 3/4″ NPT AND 2x 1/2″ NPT PRE-DRILLED HOLES FOR LOW-VOLTAGE CONDUIT
– UL1449 LISTED TYPE 2 SPD
– UL1283 LISTED EMI/RFI
