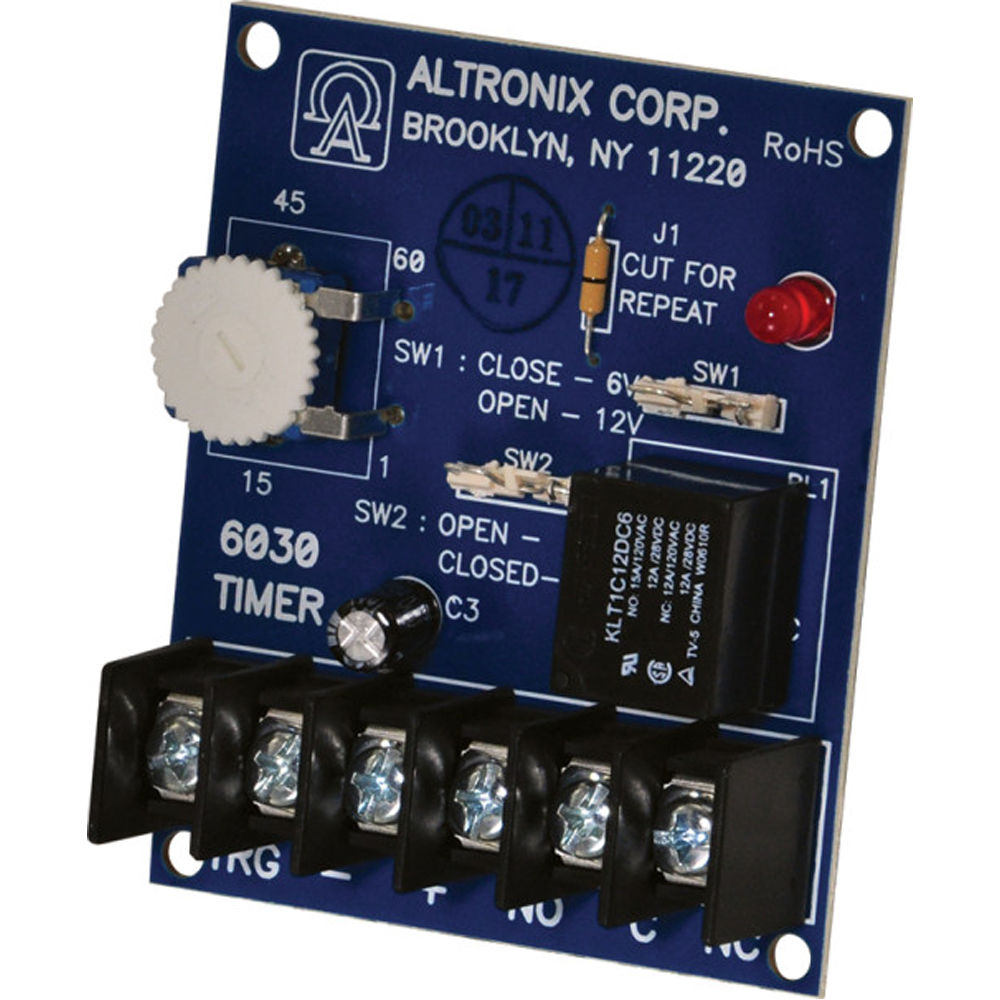

Altronix Multi-purpose 6/12vdc Timer Control Board Module

SPECIFICATIONS:
– INPUT: 6VDC OR 12VDC OPERATION IS SELECTABLE

RELAY:
– FORM “C” RELAY CONTACTS ARE 8A AT 120VAC/28VDC
– CURRENT DRAW STAND BY 3MA RELAY ENERGIZES AT 75MA
– RELAY ACTIVATES AT THE END OF THE TIMING CYCLE

FEATURES:
– QUICK AND EXTREMELY ACCURATE TIME RANGE ADJUSTMENT FROM 1 SECOND TO 60 MINUTES
– REPEAT (FLASHER/PULSE) MODE

VISUAL INDICATORS:
– LED INDICATES RELAY IS ENERGIZED

ELECTRICAL:
– OPERATING TEMP: 0° C TO 49° C (32° F TO 120° F)
– STORAGE TEMP: – 20° C TO 70° C ( – 4° F TO 158° F)
– RELATIVE HUMIDITY 85% +/- 5%
