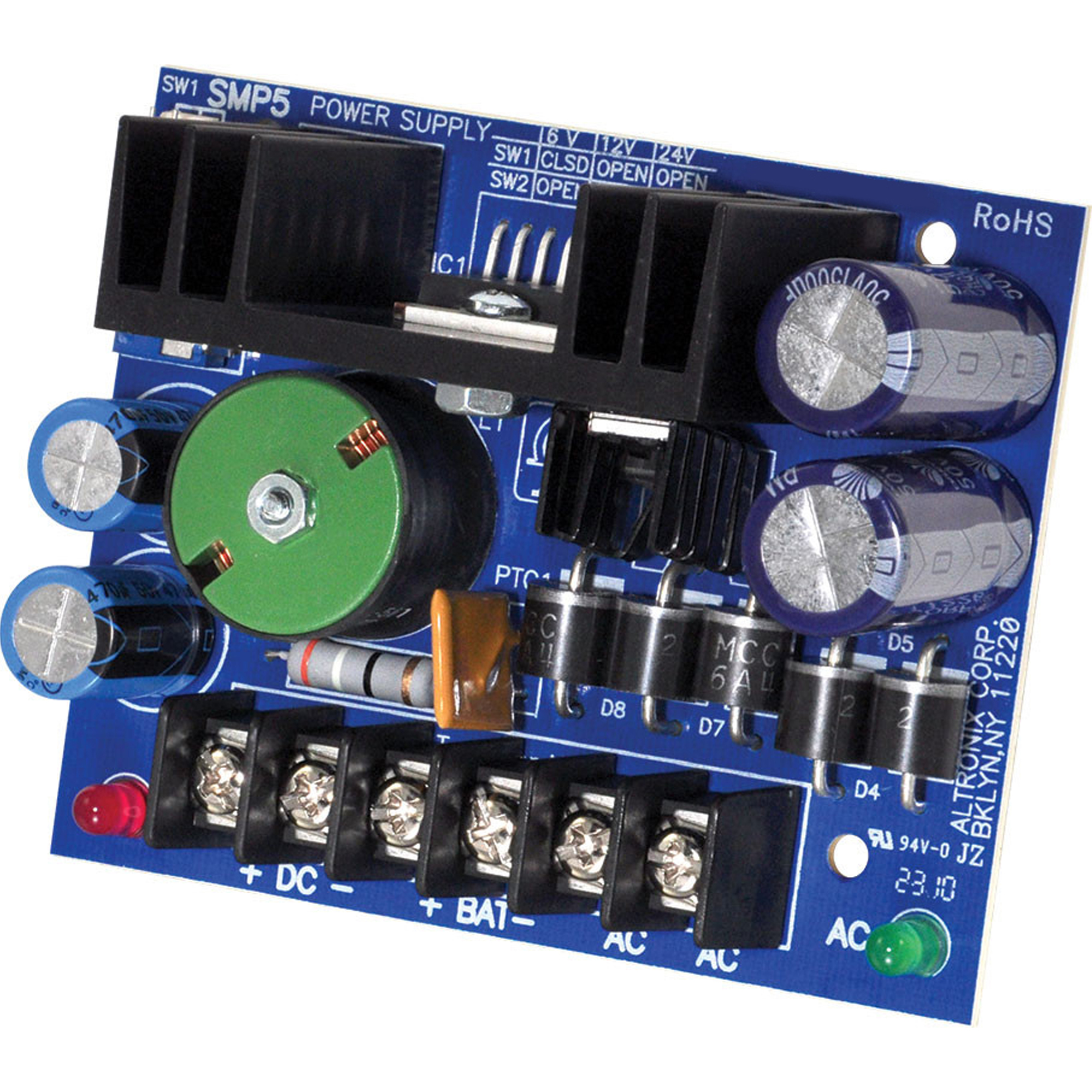

SPECIFICATIONS:

INPUT:
– 6VDC APPLICATIONS USE TP1640
– 12VDC APPLICATIONS USE T2428100
– 24VDC APPLICATIONS USE T2428175

OUTPUT:
– 6VDC, 12VDC OR 24VDC SELECTABLE OUTPUT
– 4A SUPPLY CURRENT
– FILTERED AND ELECTRONICALLY REGULATED OUTPUTS
– SHORT CIRCUIT AND THERMAL OVERLOAD PROTECTION

BATTERY BACKUP:
– BUILT-IN CHARGER FOR SEALED LEAD ACID OR GEL TYPE BATTERIES
– ZERO VOLTAGE DROP WHEN SWITCHING OVER TO BATTERY BACKUP

VISUAL INDICATORS:
– AC INPUT AND DC OUTPUT LED INDICATORS
