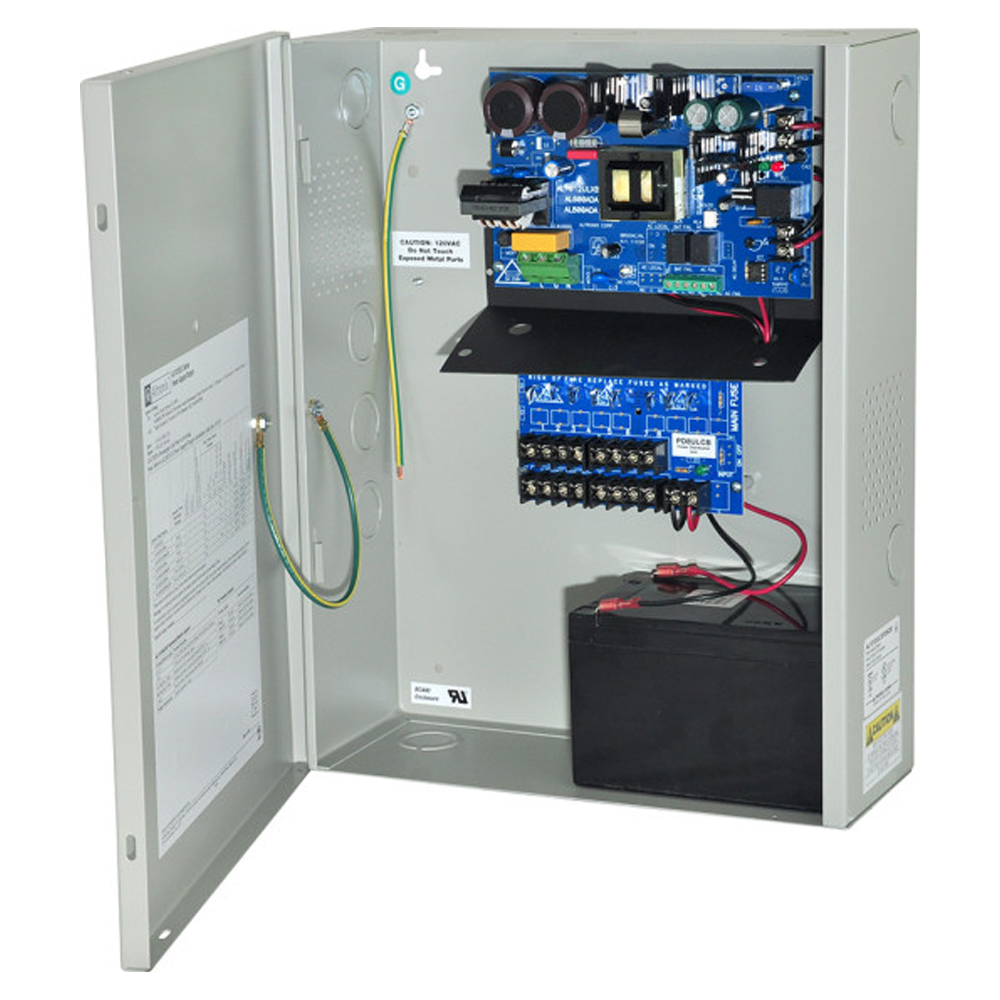

Altronix 8 Channel Multi-Output Fused 12VDC Power Supply

SPECIFICATIONS:

INPUT:
– 115VAC, 60HZ, 1.9A
– INPUT FUSE RATED @ 5A/250V

OUTPUT:
– 12VDC OUTPUT
– 10A CONTINUOUS SUPPLY CURRENT
– EIGHT (8) CLASS 2 RATED PTC PROTECTED POWER LIMITED OUTPUTS (AUTO-RESETTABLE)
– OUTPUTS ARE RATED @ 2.5A
– FILTERED AND ELECTRONICALLY REGULATED OUTPUT
– SHORT CIRCUIT AND THERMAL OVERLOAD PROTECTION

BATTERY BACKUP:
– BUILT-IN CHARGER FOR SEALED LEAD ACID OR GEL TYPE BATTERIES
– AUTOMATIC SWITCH OVER TO STAND-BY BATTERY WHEN AC FAILS

SUPERVISION:
– AC FAIL SUPERVISION (FORM “C” CONTACTS)
– NOTIFICATION TRIGGER IS SELECTABLE FOR 30 SECONDS (FACTORY SET) OR 6 HOURS
– LOW BATTERY SUPERVISION (FORM “C” CONTACTS)
– BATTERY PRESENCE SUPERVISION (FORM “C” CONTACTS)

VISUAL INDICATORS:
– AC INPUT AND DC OUTPUT LED INDICATORS

TEMPERATURE:
– OPERATING TEMP: 0 TO 49° C (32 TO 120° F )
– STORAGE TEMP: – 20 TO 70° C ( – 4 TO 158° F)
– RELATIVE HUMIDITY 85% +/- 5%
– BTU/HR. (APPROX.): 61 BTU/HOUR
– SYSTEM AC INPUT VA REQUIREMENT: 299VA
