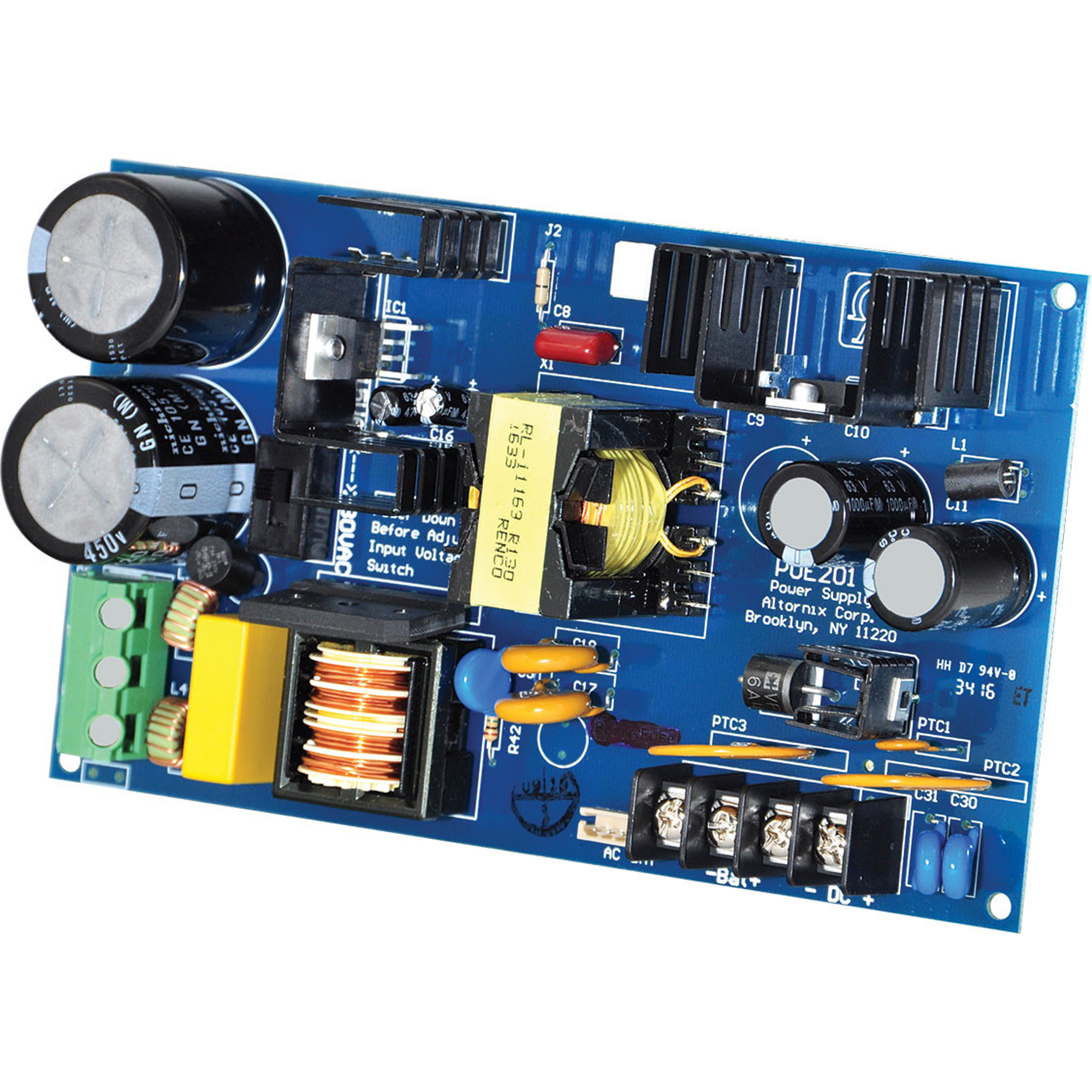

Altronix 56vdc 120watt Poe Power Supply Replacement Board Module

SPECIFICATIONS:

INPUT:
– 115VAC, 60 HZ, 2.5A OR 230VAC, 50/60 HZ, 1.3A

OUTPUT:
– 56VDC/120W OUTPUT
– 2.2A CONTINUOUS SUPPLY CURRENT
– FILTERED AND ELECTRONICALLY REGULATED OUTPUT
– SHORT CIRCUIT AND THERMAL OVERLOAD PROTECTION

BATTERY BACKUP:
– BUILT-IN CHARGER FOR SEALED LEAD ACID OR GEL TYPE BATTERIES
– BATTERY CHARGING CIRCUIT: 48VDC, 300MA
– AUTOMATIC SWITCH OVER TO STAND-BY BATTERY WHEN AC FAILS

FEATURES:
– INPUT VOLTAGE SELECTION SWITCH
– INCLUDES BATTERY LEADS
