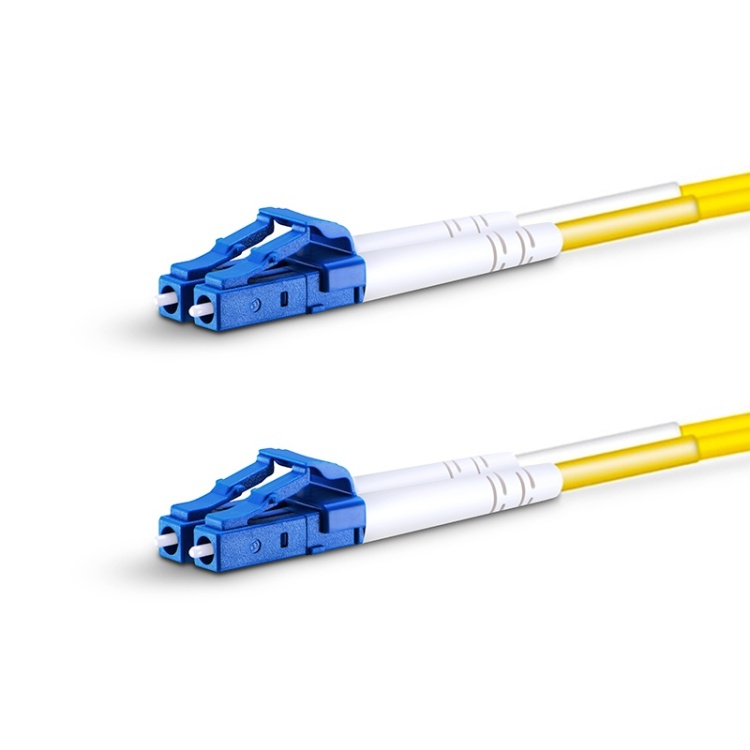

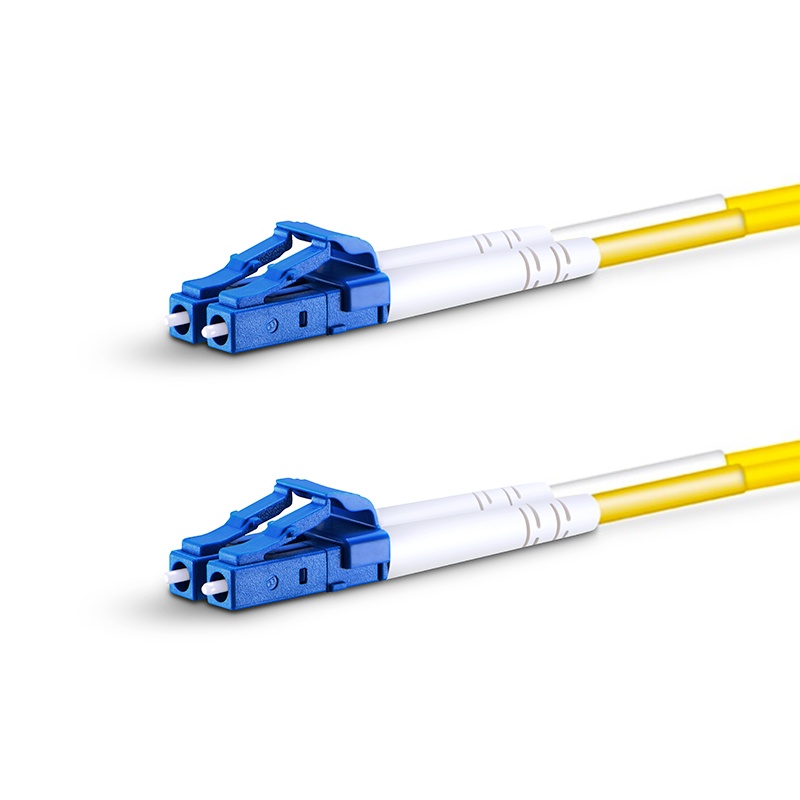

The SM LC/LC Duplex Fiber Assembly is a high-performance singlemode fiber optic cable designed for fast and reliable data transmission in high-speed networks. Featuring LC connectors on both ends, this duplex fiber assembly ensures low insertion loss and excellent signal quality, making it ideal for use in data centers, telecommunications, and enterprise network applications. The duplex design supports bidirectional communication, providing efficient connectivity for long-distance and mission-critical connections. Perfect for IT professionals and network installers, the SM LC/LC Duplex Fiber Assembly delivers dependable performance and superior network reliability.
- Connector A: LC UPC Duplex
- Connector B: LC UPC Duplex
- Fiber Count: 2 Fibers
- Fiber Grade: G.657.A1 (Compatible with G.652.D)
- Fiber Mode: OS2 9/125μm
- Wavelength: 1310/1550nm
- Polarity: A (Tx) to B (Rx)
- Cable Type: Tight-Buffered
- Cable Outside Diameter (OD): 2.0mm
- Cable Jacket: Riser (OFNR)
- Bend Radius (Optical Fiber): 10mm
- Bend Radius (Fiber Cable): 10/5D (Dynamic/Static)
- Connector Durability: 1000 times
- Tensile Strength (Long/Short Term): 90/150N
- Insertion Loss: ≤0.3dB
- Return Loss: ≥50dB
- Attenuation at 1310 nm: 0.36dB/km
- Attenuation at 1550 nm: 0.22dB/km
- Operating Temperature: -20 to 70°C (-4 to 158F)
- Storage Temperature: -40 to 80°C (-40 to 176F)
