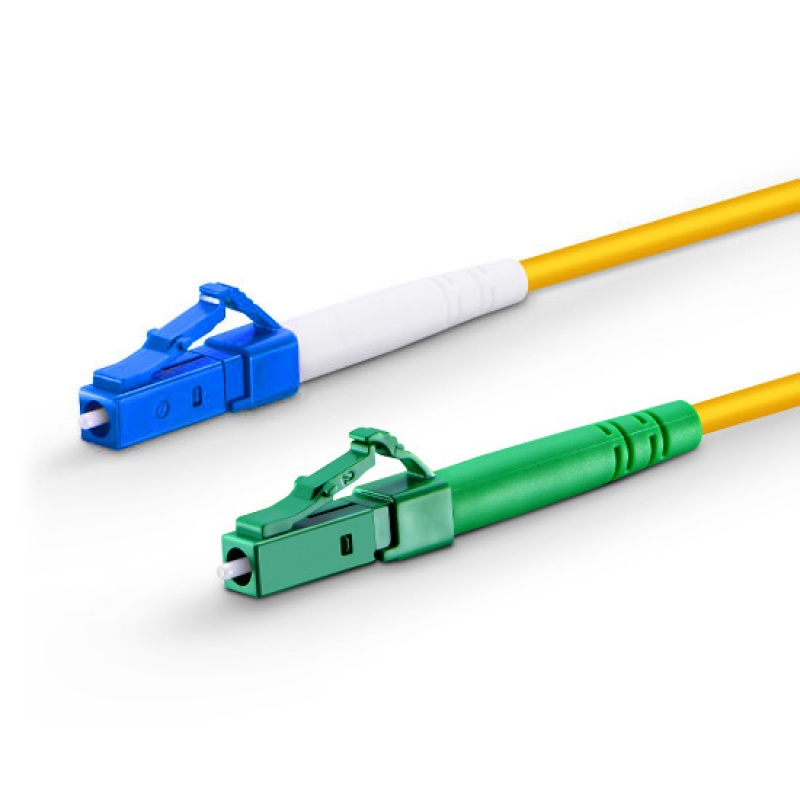

LC-APC/LC-UPC Simplex Singlemode Fiber Patch Cable | 2 Meter

$4.49

  • Connector A: LC UPC Simplex
  • Connector B: LC APC Simplex
  • Fiber Count: 1 Fiber
  • Fiber Grade: G.657.A1 (Compatible with G.652.D)
  • Fiber Mode: OS2 9/125μm
  • Wavelength: 1310/1550nm
  • RoHS Compliancy Status: Compliant
  • Cable Type: Tight-Buffered
  • Cable Outside Diameter (OD): 2.0mm
  • Cable Jacket: Riser (OFNR)
  • Bend Radius (Optical Fiber): 10mm
  • Bend Radius (Fiber Cable): 10/5D (Dynamic/Static)
  • Connector Durability: 1000 times
  • Tensile Strength (Long/Short Term): 60/100N
  • Insertion Loss: ≤0.3dB
  • Return Loss: UPC≥50dB, APC≥60dB
  • Attenuation at 1310 nm: 0.36dB/km
  • Attenuation at 1550 nm: 0.22dB/km
  • Operating Temperature: -20 to 70°C (-4 to 158F)
  • Storage Temperature: -40 to 80°C (-40 to 176F)

Out of stock

SKU: CCFJ-LCALCUSS02M Categories: ,

The LC-APC/LC-UPC Simplex Singlemode Fiber Patch Cable is a high-performance fiber optic solution designed for precise data transmission in long-distance networks. Featuring LC-APC (Angled Physical Contact) and LC-UPC (Ultra Physical Contact) connectors, this simplex patch cable ensures low insertion loss and optimal signal quality, making it ideal for telecommunications, data centers, and high-speed network applications. The singlemode fiber supports unidirectional communication, providing reliable connectivity for critical network infrastructure. Perfect for IT professionals and network installers, the LC-APC/LC-UPC Simplex Singlemode Fiber Patch Cable delivers dependable performance and seamless integration for advanced networking needs.

  • Connector A: LC UPC Simplex
  • Connector B: LC APC Simplex
  • Fiber Count: 1 Fiber
  • Fiber Grade: G.657.A1 (Compatible with G.652.D)
  • Fiber Mode: OS2 9/125μm
  • Wavelength: 1310/1550nm
  • RoHS Compliancy Status: Compliant
  • Cable Type: Tight-Buffered
  • Cable Outside Diameter (OD): 2.0mm
  • Cable Jacket: Riser (OFNR)
  • Bend Radius (Optical Fiber): 10mm
  • Bend Radius (Fiber Cable): 10/5D (Dynamic/Static)
  • Connector Durability: 1000 times
  • Tensile Strength (Long/Short Term): 60/100N
  • Insertion Loss: ≤0.3dB
  • Return Loss: UPC≥50dB, APC≥60dB
  • Attenuation at 1310 nm: 0.36dB/km
  • Attenuation at 1550 nm: 0.22dB/km
  • Operating Temperature: -20 to 70°C (-4 to 158F)
  • Storage Temperature: -40 to 80°C (-40 to 176F)
Weight 0.120 lbs
