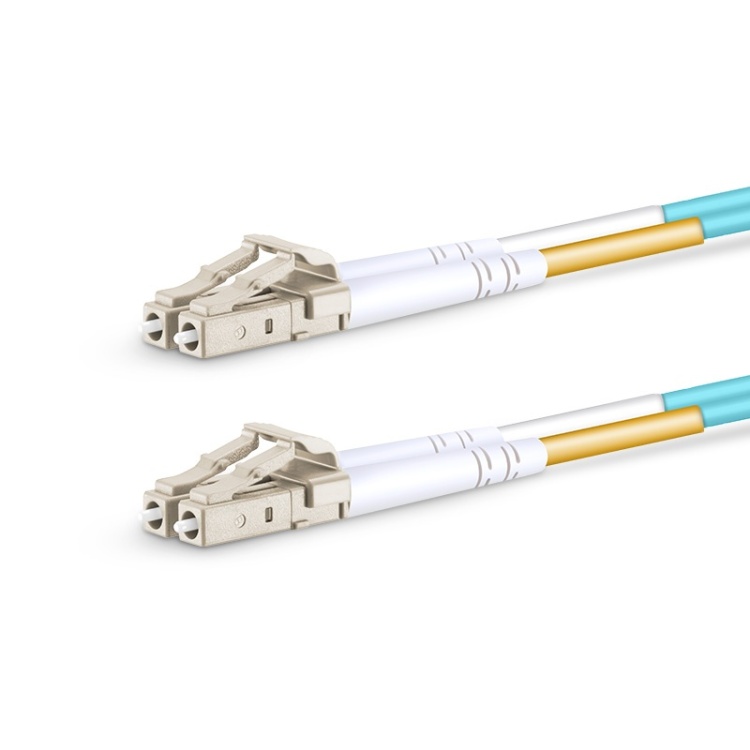

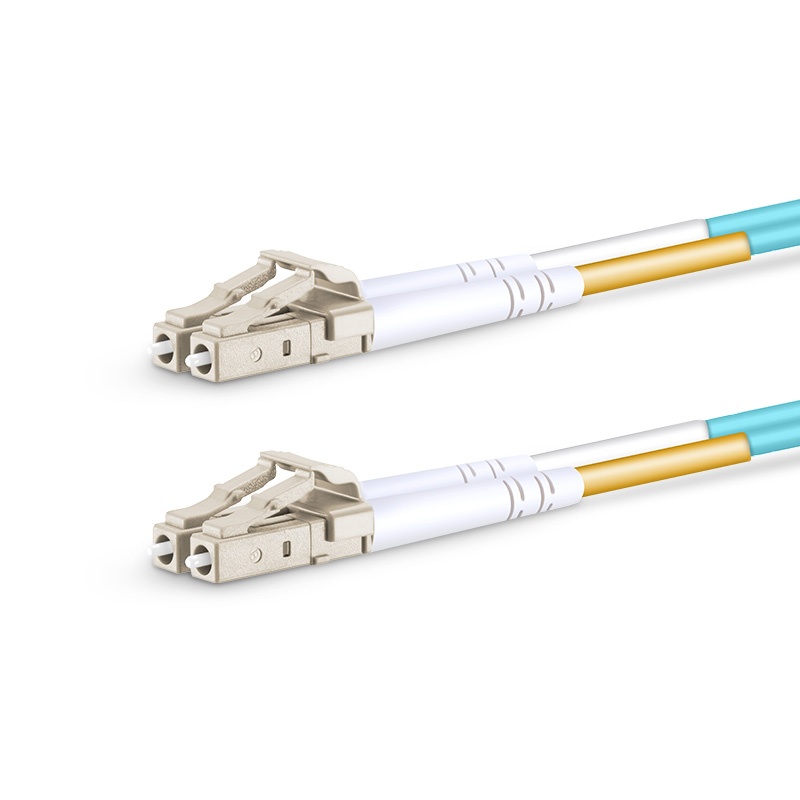

The OM4 LC/LC Duplex Fiber Patch Assembly is a high-performance multimode fiber optic cable designed for ultra-fast data transmission in modern networks. Featuring LC connectors on both ends, this OM4 duplex patch cable ensures low insertion loss and superior signal quality, making it ideal for data centers, cloud computing, and high-bandwidth applications. The OM4 rating supports extended reach for 10Gb, 40Gb, and 100Gb networks, providing reliable connectivity for mission-critical environments. Perfect for IT professionals and network installers, the OM4 LC/LC Duplex Fiber Patch Assembly delivers dependable performance and seamless integration for high-speed networking needs.
- Connector A: LC UPC Duplex
- Connector B: LC UPC Duplex
- Fiber Count: 2 Fibers
- Fiber Grade: Bend Insensitive
- Fiber Mode: OM4 50/125μm
- Wavelength: 850/1300nm
- Polarity: A (Tx) to B (Rx)
- Cable Type: Tight-Buffered
- Cable Outside Diameter (OD): 2.0mm
- Cable Jacket: Riser (OFNR)
- Bend Radius (Optical Fiber): 7.5mm
- Bend Radius (Fiber Cable): 20/10D (Dynamic/Static)
- Connector Durability: 1000 times
- Tensile Strength (Long/Short Term): 90/150N
- Typical Insertion Loss: ≤0.08dB
- Max Insertion Loss: ≤0.15dB
- Interface Feature: Ultra Low
- Return Loss: ≥30dB
- Attenuation at 850 nm: 3.0dB/km
- Attenuation at 1300 nm: 1.0dB/km
- Operating Temperature: -20 to 70°C (-4 to 158F)
- Storage Temperature: -40 to 80°C (-40 to 176F)
