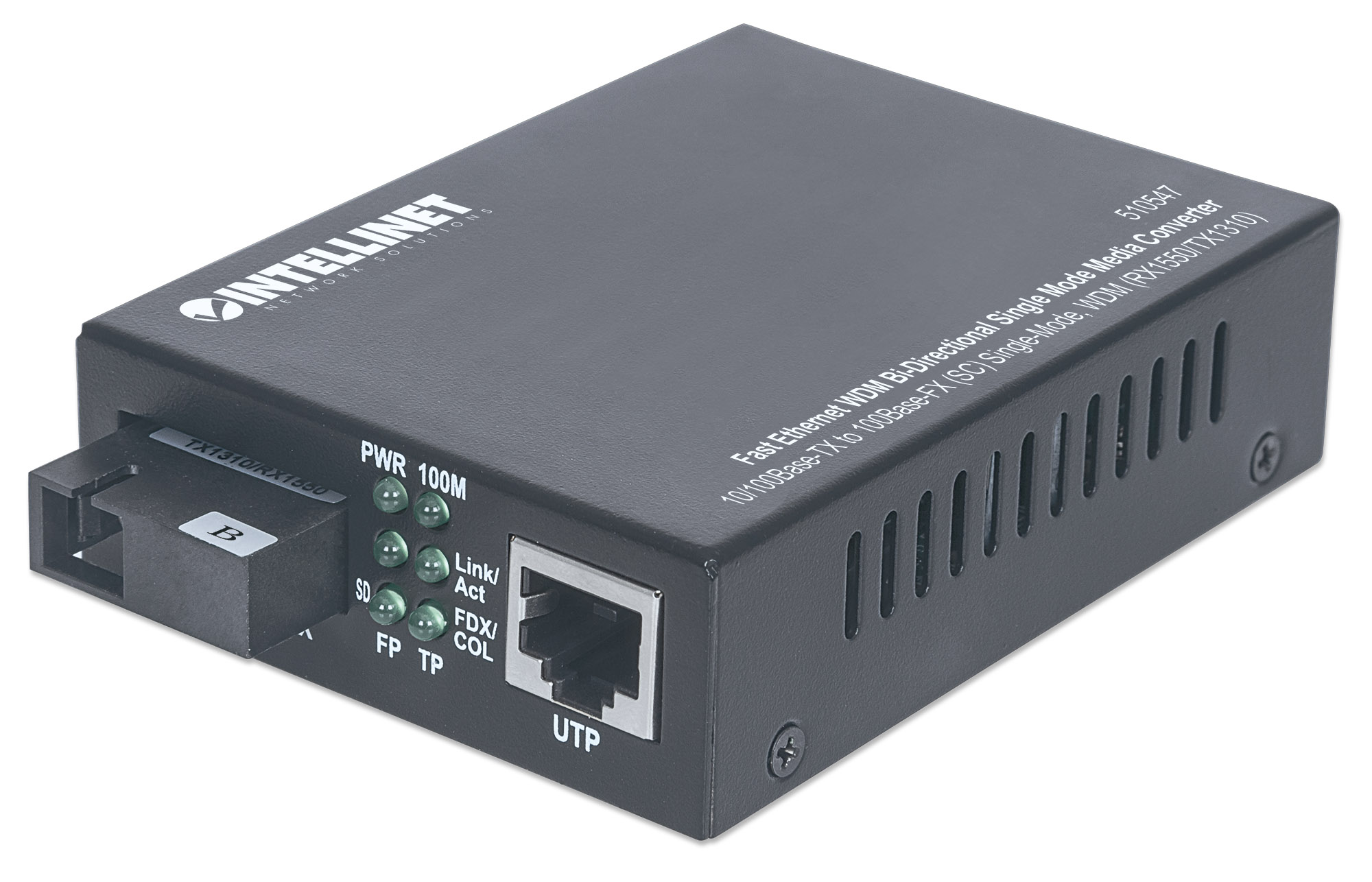

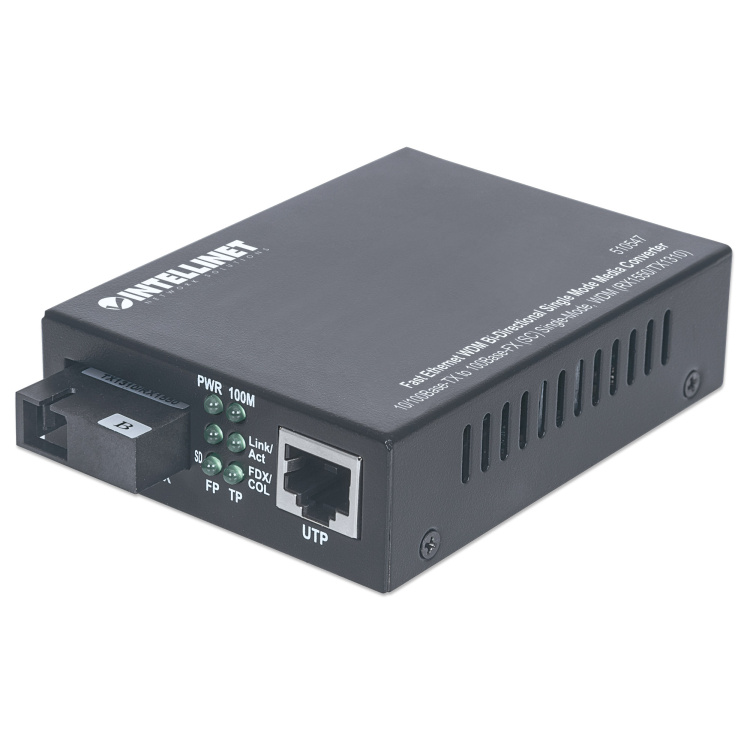

The Intellinet Media Converter Singlemode Fast Ethernet WDM Bi-Directional is an efficient and reliable solution for extending your network over long distances using singlemode fiber. Featuring WDM (Wavelength Division Multiplexing) technology, this media converter allows for bi-directional data transmission on a single fiber strand, optimizing fiber usage and reducing cabling costs. It supports Fast Ethernet speeds (100 Mbps) for seamless connectivity, making it ideal for applications such as telecommunications, enterprise networks, and data centers. The Intellinet Media Converter delivers long-range, high-performance networking, ensuring dependable and cost-effective fiber connectivity.
- Fiber SC-type dual-wavelength single-mode port connects over distances of up to 20 km (12.4 miles)
- Must be used with Fast Ethernet WDM Bi-Directional Single Mode Media Converter, model 510530
- Data transfer rate: 100 Mbps
- WDM (wavelength division multiplexing) technology utilizes only one strand of fiber to transmit data on separate receive and transmit wavelengths
- Wavelengths: receive (RX), 1550 nm; transmit (TX), 1310 nm
- 10/100Base-TX RJ45 port, maximum distance 100 m / 300 ft. (Cat5e and better)
- RJ45 port with Auto MDI/MDI-X support
- 100Base-FX single-mode fiber SC port
- Status LEDs for easy monitoring of device status
- Supports jumbo frames up to 1.6 KBytes
- Functions as a stand-alone converter or can be used with the 14-slot Media Converter Chassis, model 507356
- External power adapter, 5 VDC
- Fully NDAA-compliant
- Three-Year Warranty
