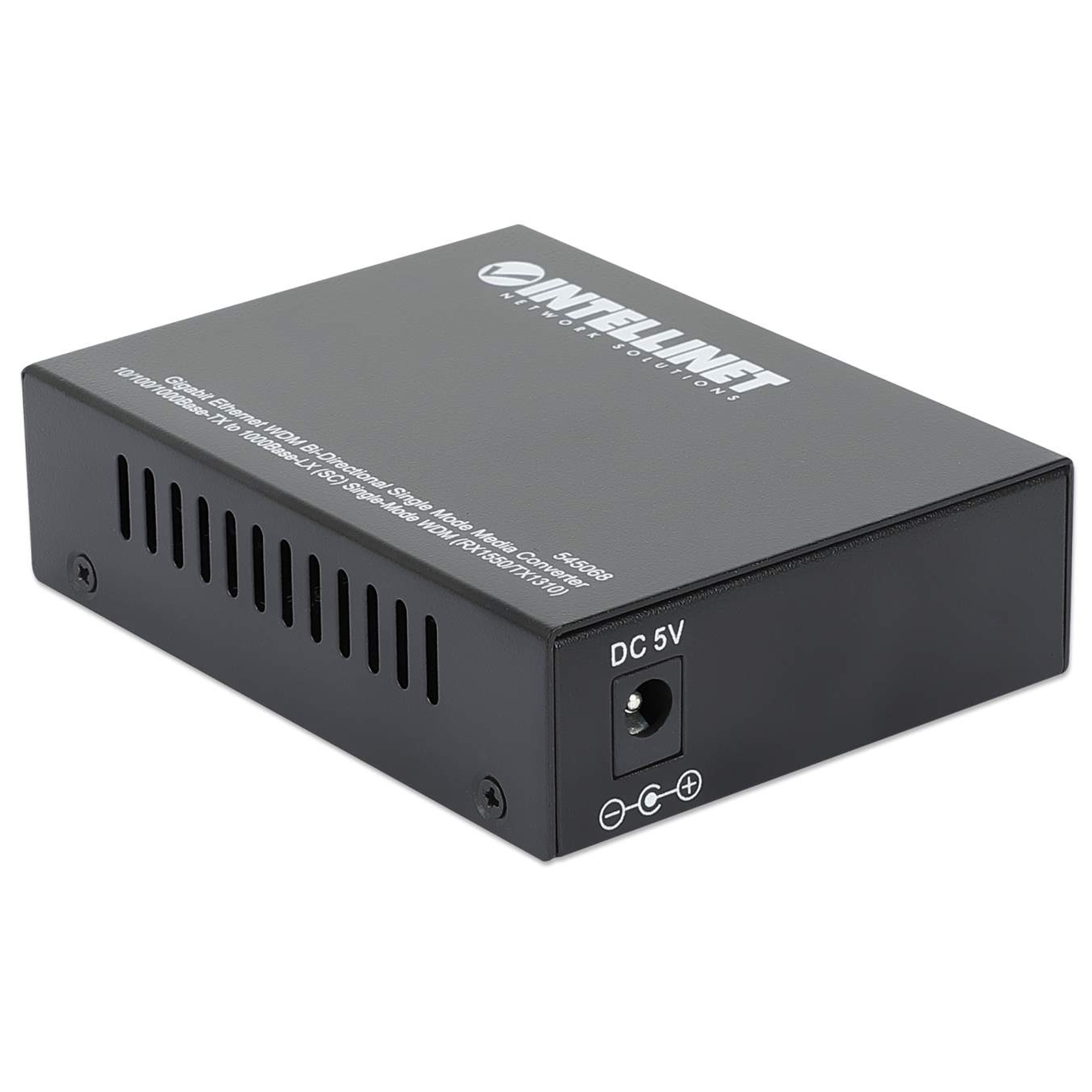

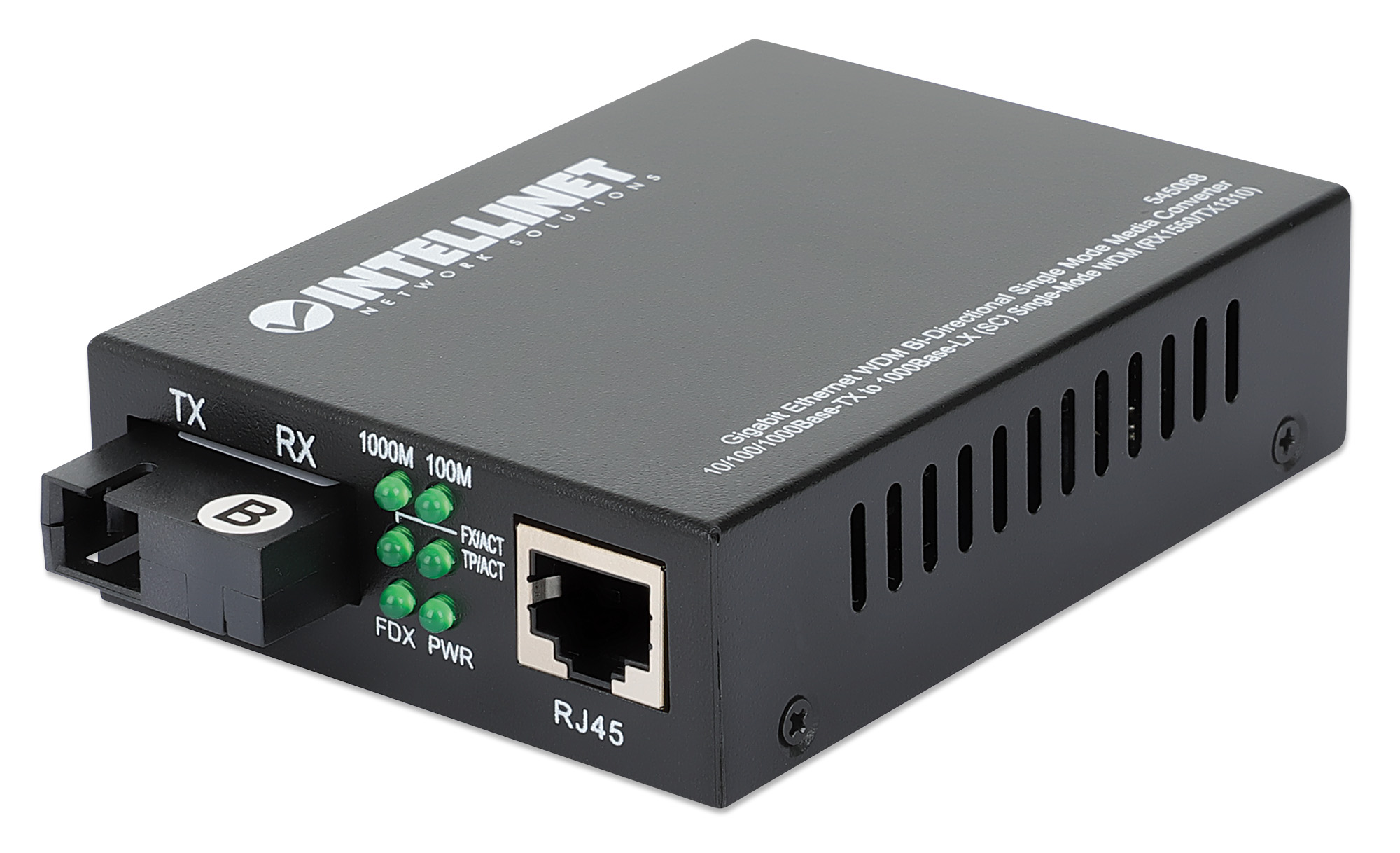

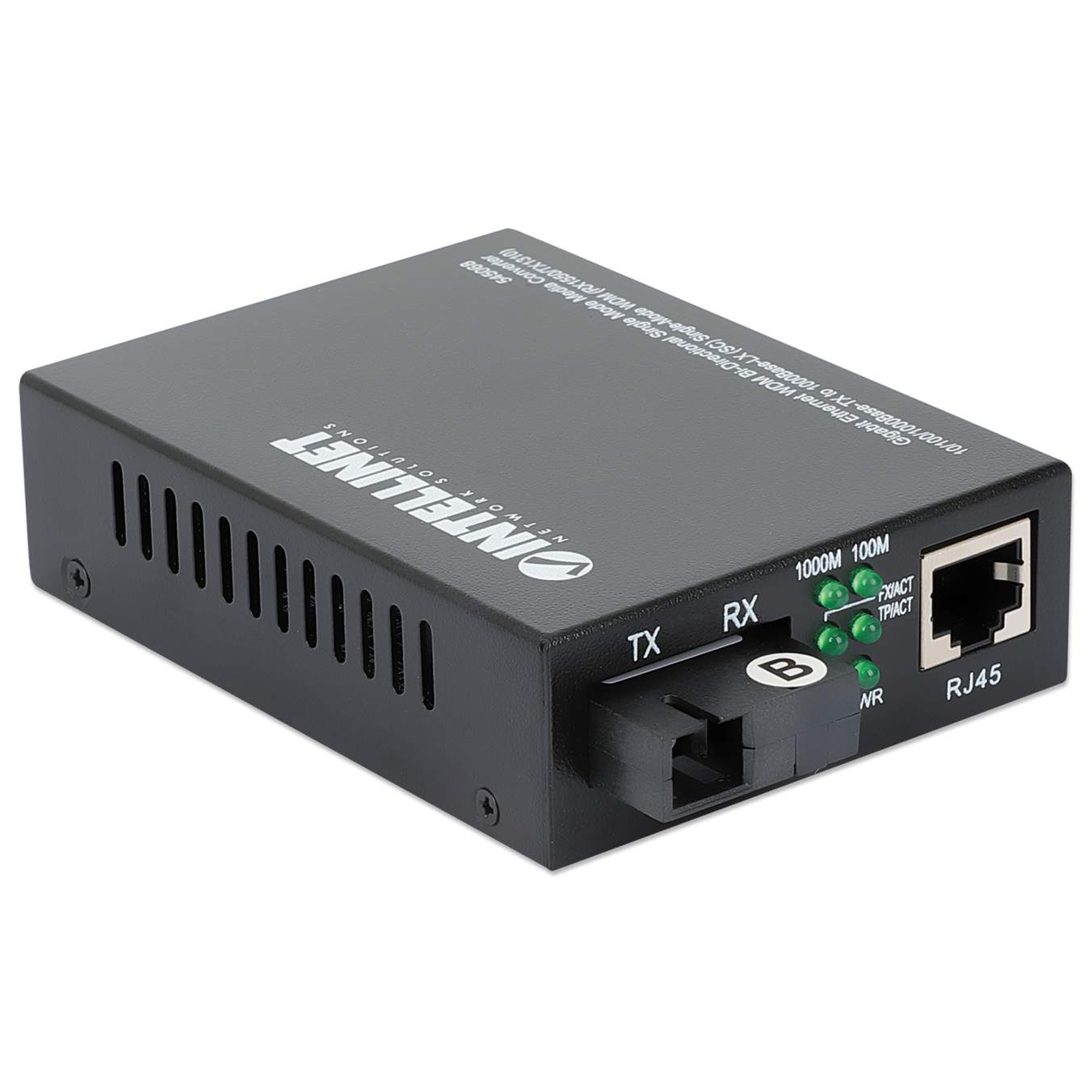

The Intellinet Media Converter SC Singlemode Gigabit 10/100/1000 Base-TX WDM is a powerful and efficient solution for extending network connectivity over long distances, up to 20km (12.4 miles), using singlemode fiber. Featuring WDM (Wavelength Division Multiplexing) technology, this media converter allows for bi-directional data transmission on a single fiber strand, optimizing fiber usage. It supports 10/100/1000 Base-TX Ethernet, providing flexible and high-speed network integration. Ideal for data centers, enterprise networks, and telecommunications, the Intellinet Media Converter ensures reliable, long-range connectivity between copper and fiber networks.
- Fiber SC-type dual-wavelength single-mode port connects over distances of up to 20 km (12.4 miles)
- Must be used with Gigabit Ethernet WDM Bi-Directional Single Mode Media Converter, model 545075
- Data transfer rate: 10/100/1000 Mbps
- WDM (wavelength division multiplexing) technology utilizes only one strand of fiber to transmit data on separate receive and transmit wavelengths
- Wavelengths: receive (RX), 1550 nm; transmit (TX), 1310 nm
- One 10/100/1000Base-TX RJ45 port, maximum distance 100 m / 300 ft.
- RJ45 port with Auto MDI/MDI-X support

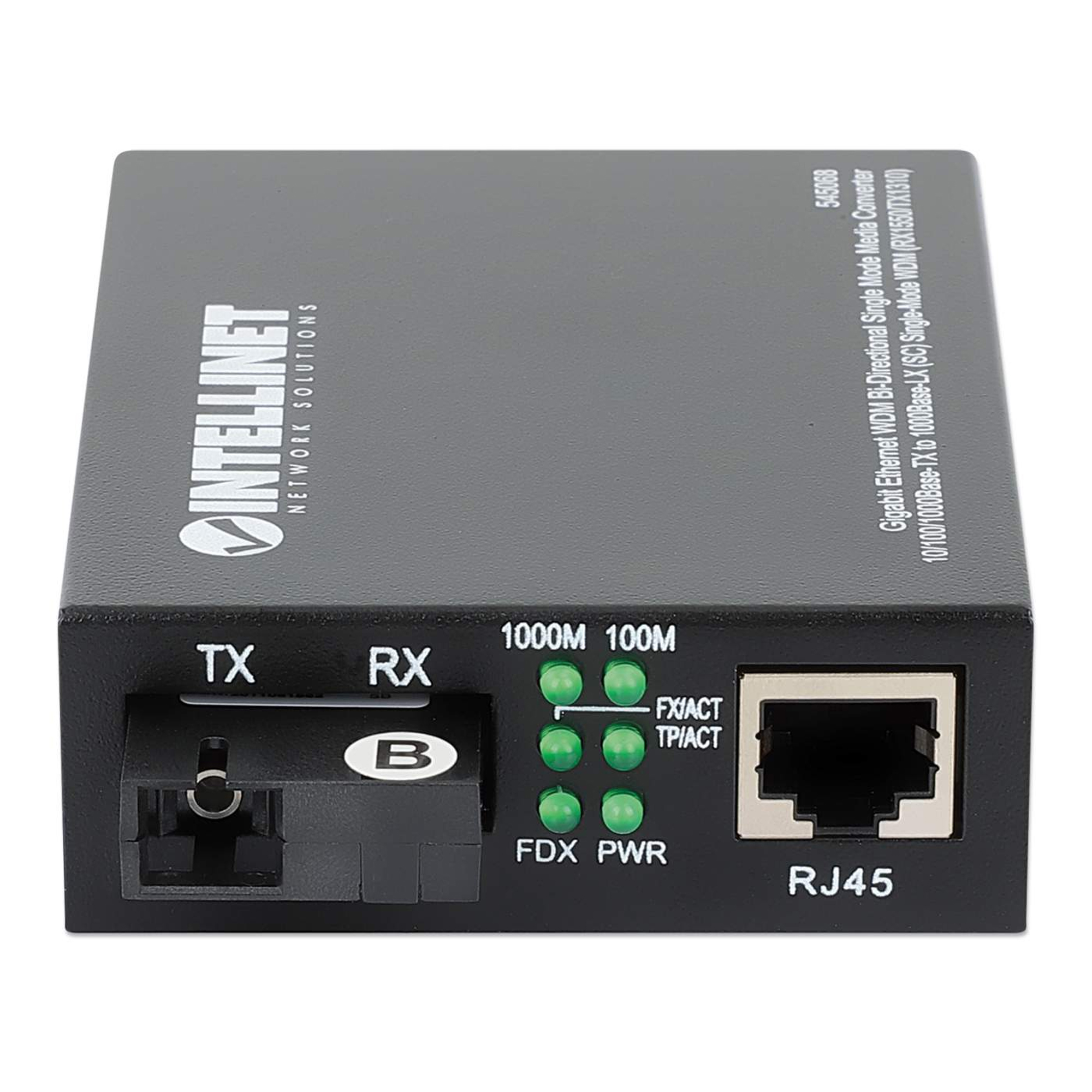

- Status LEDs for easy monitoring of device status
- Supports jumbo frames up to 9 kBytes
- Functions as a stand alone converter or can be used with the 14-slot Media Converter Chassis, model 507356

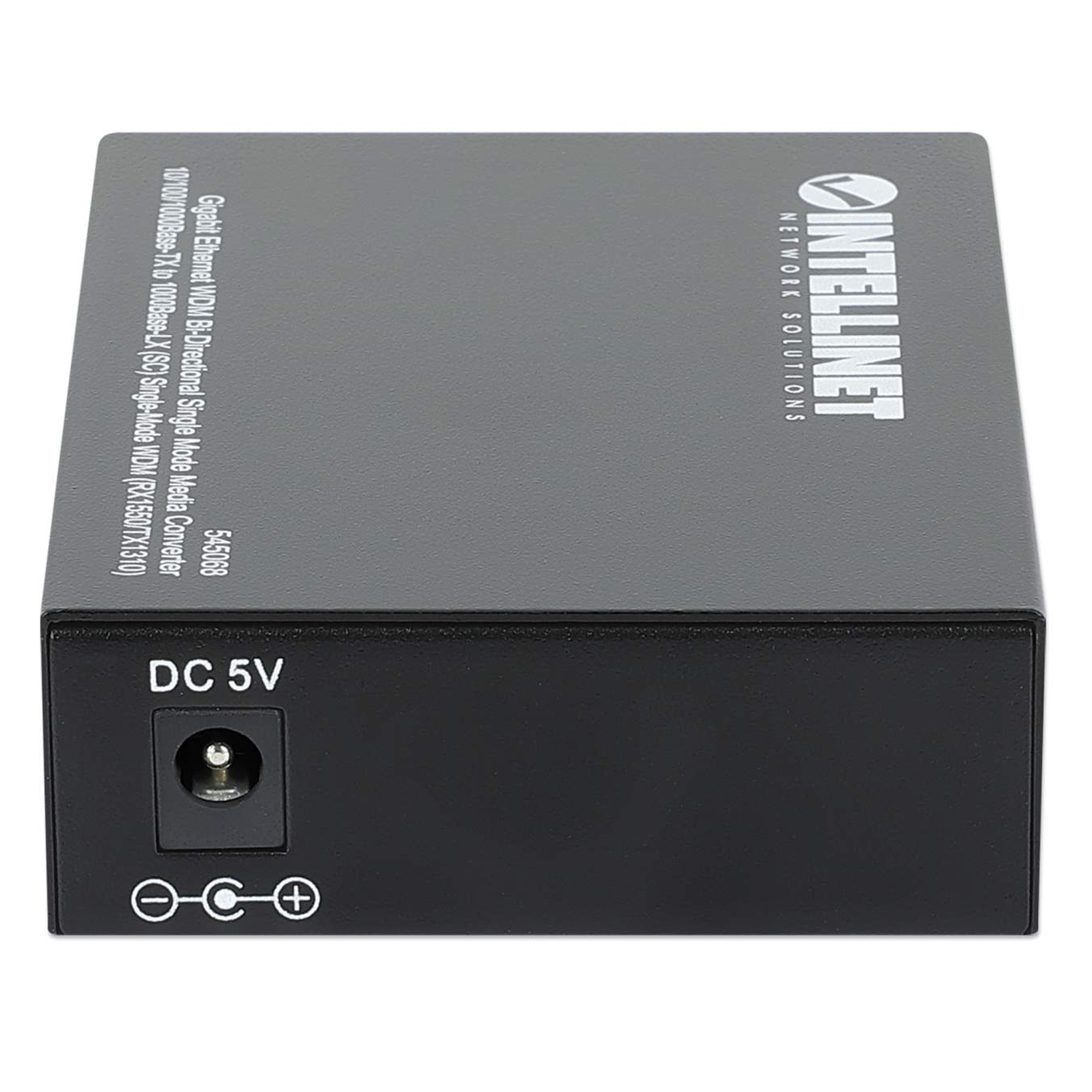

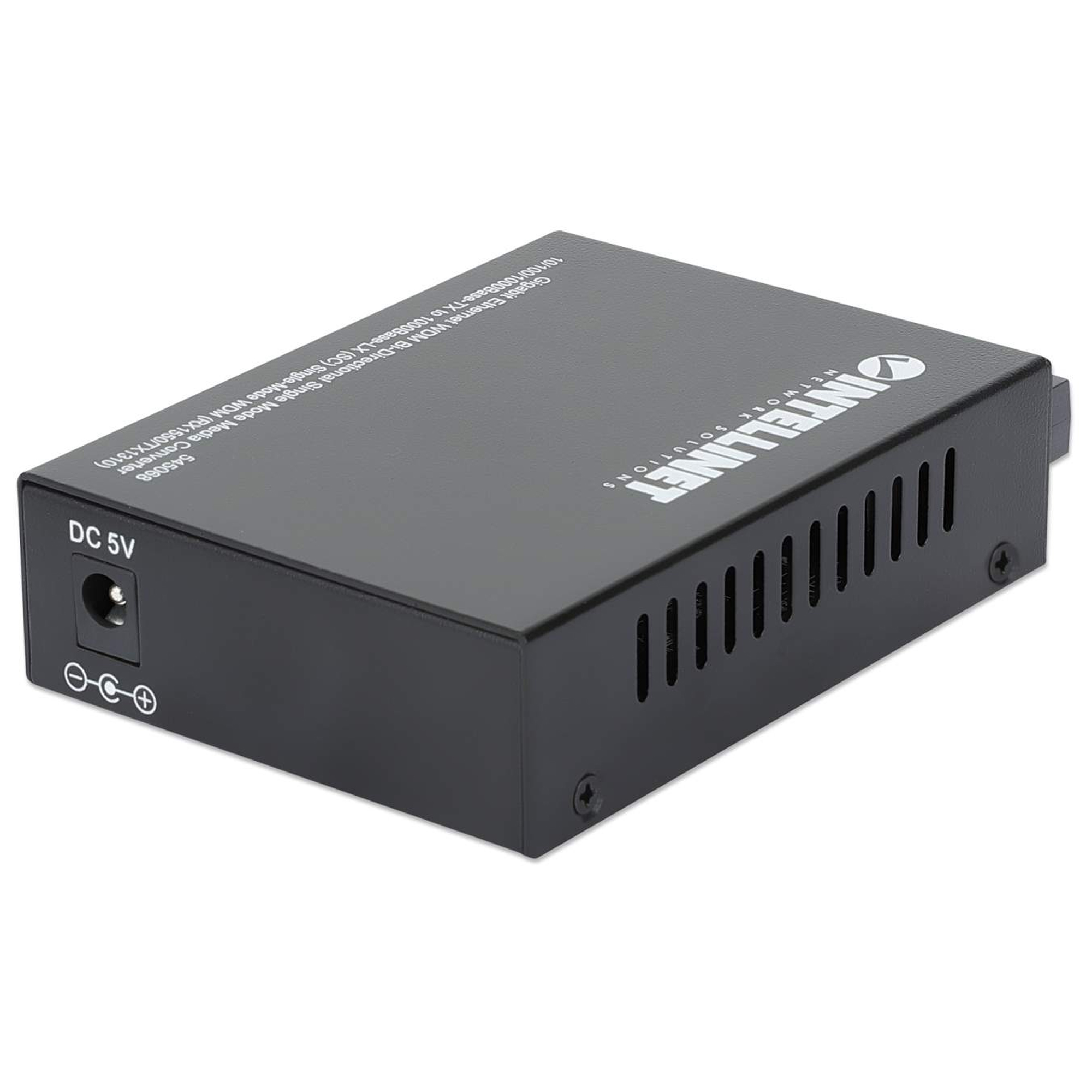

- External power adapter, 5 VDC
- Fully NDAA-compliant
- Three-Year Warranty
