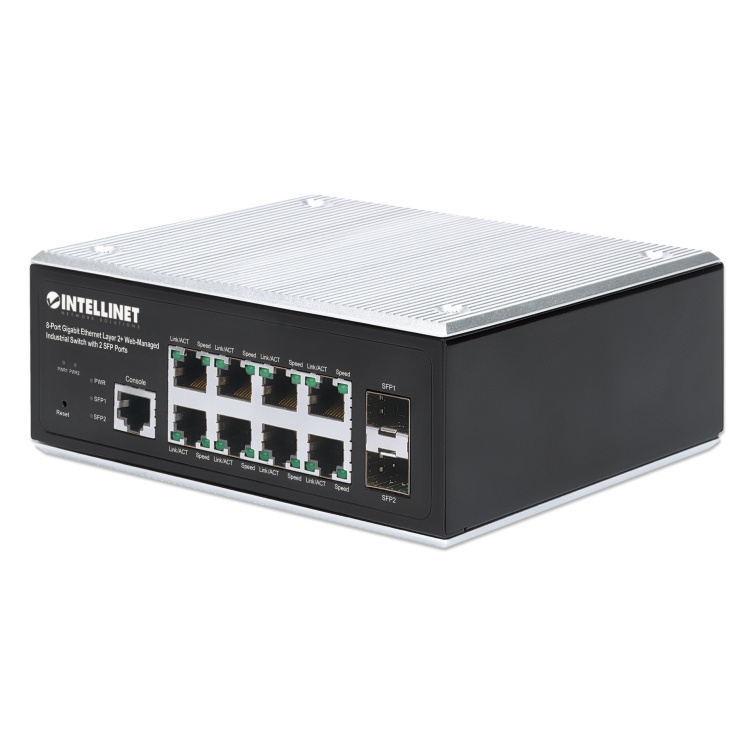

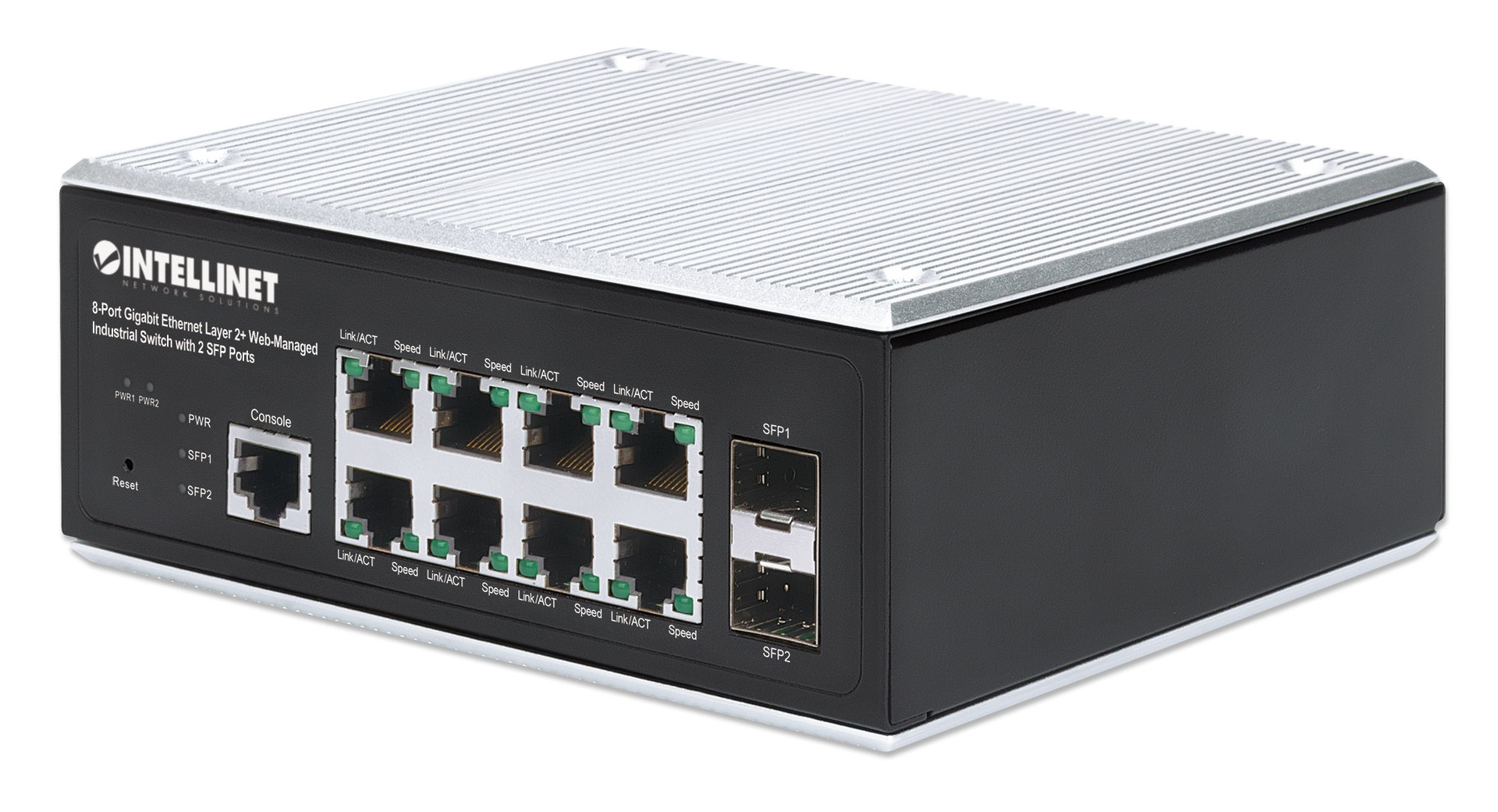

The Intellinet 8-Port Industrial Gigabit Ethernet Layer 2+ Web-Managed Switch with 2 SFP Ports is a powerful and versatile networking solution designed for industrial and enterprise environments. Featuring 8 Gigabit Ethernet ports and 2 additional SFP slots for fiber connections, this switch provides reliable, high-speed data transmission over long distances. The Layer 2+ web-managed capabilities offer advanced network management, including VLAN, QoS, and security settings, ensuring efficient and secure network operations. Built to withstand harsh conditions, this industrial-grade switch is ideal for manufacturing, telecommunications, and mission-critical applications, delivering robust and scalable networking performance.
- 10/100/1000 auto-sensing ports that automatically detect optimal network speeds
- Domotz compatible for cloud management
- IP30-rated metal housing to withstand harsh industrial conditions
- Suitable for extreme operating temperatures of -40 to 85ºC (-40 to 185ºF)
- Option for DIN-rail installation
- Two small form-factor pluggable GBIC module slots (SFP)
- Two redundant DC inputs (44 – 57 V) with I/O terminal block
- Power failure alarm
- Port surge protection up to 6 kV
- Grounding point to protect equipment from external electrical surges
- Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32) and vibration (IEC 60068-2-6)
- 20 Gbps switch fabric
- Auto-MDIX and NWay auto-negotiation support on all RJ45 ports
- SNMP Management and Remote Monitoring (RMON)
- Supports VLAN (tag-based and port-based)
- Supports two types of QoS: port-based and DSCP
- Provides IEEE 802.1x port-based security
- Supports link aggregation (trunking)
- Supports bandwidth control per port
- Supports port mirroring
- IGMP Snooping for multicast filtering
- Broadcast storm control with multicast packet rate settings
- Supports 8k MAC address entries with Auto-learning and Auto-aging
- Buffer memory of 4.1 Mbit
- Supports jumbo frames up to 9 kBytes
- Supports Rapid Spanning Tree/Spanning Tree Protocol
- Store and forward switching architecture
- Full/half duplex operation
- IEEE 802.3x flow control for full duplex
- Configuration via Web browser, Telnet, SSH or console port
- LEDs for power, link/activity, and SFP
- Fanless design for silent operation
- Requires additional industrial power supply (not included)
- Fully NDAA-compliant
- Three-year warranty
