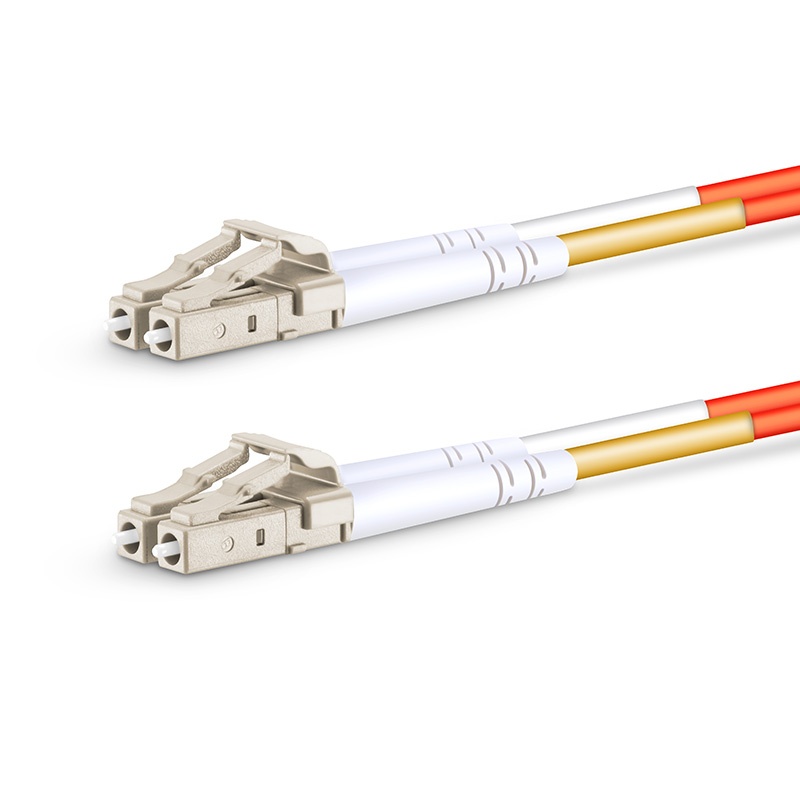

The LC/LC Duplex Fiber Patch Assembly is a high-quality fiber optic cable designed for efficient data transmission in high-speed networks. Featuring LC connectors on both ends, this duplex patch cable ensures low insertion loss and reliable signal quality, making it ideal for data centers, telecommunications, and enterprise network applications. The duplex design supports simultaneous bidirectional communication, providing stable connectivity for critical network connections. Perfect for IT professionals and network installers, the LC/LC Duplex Fiber Patch Assembly delivers dependable performance and seamless integration for various networking environments.
- Connector A: LC UPC Duplex
- Connector B: LC UPC Duplex
- Fiber Count: 2 Fibers
- Fiber Grade: G.651
- Fiber Mode: OM1 62.5/125μm
- Wavelength: 850/1300nm
- Polarity: A (Tx) to B (Rx)
- Cable Type: Tight-Buffered
- Cable Outside Diameter (OD): 2.0mm
- Cable Jacket: Riser (OFNR)
- Bend Radius (Optical Fiber): 15mm
- Bend Radius (Fiber Cable): 20/10D (Dynamic/Static)
- Connector Durability: 1000 times
- Tensile Strength (Long/Short Term): 90/150N
- Insertion Loss: ≤0.3dB
- Return Loss: ≥30dB
- Attenuation at 850 nm: 3.0dB/km
- Attenuation at 1300 nm: 1.0dB/km
- Operating Temperature: -20 to 70°C (-4 to 158F)
- Storage Temperature: -40 to 80°C (-40 to 176F)
