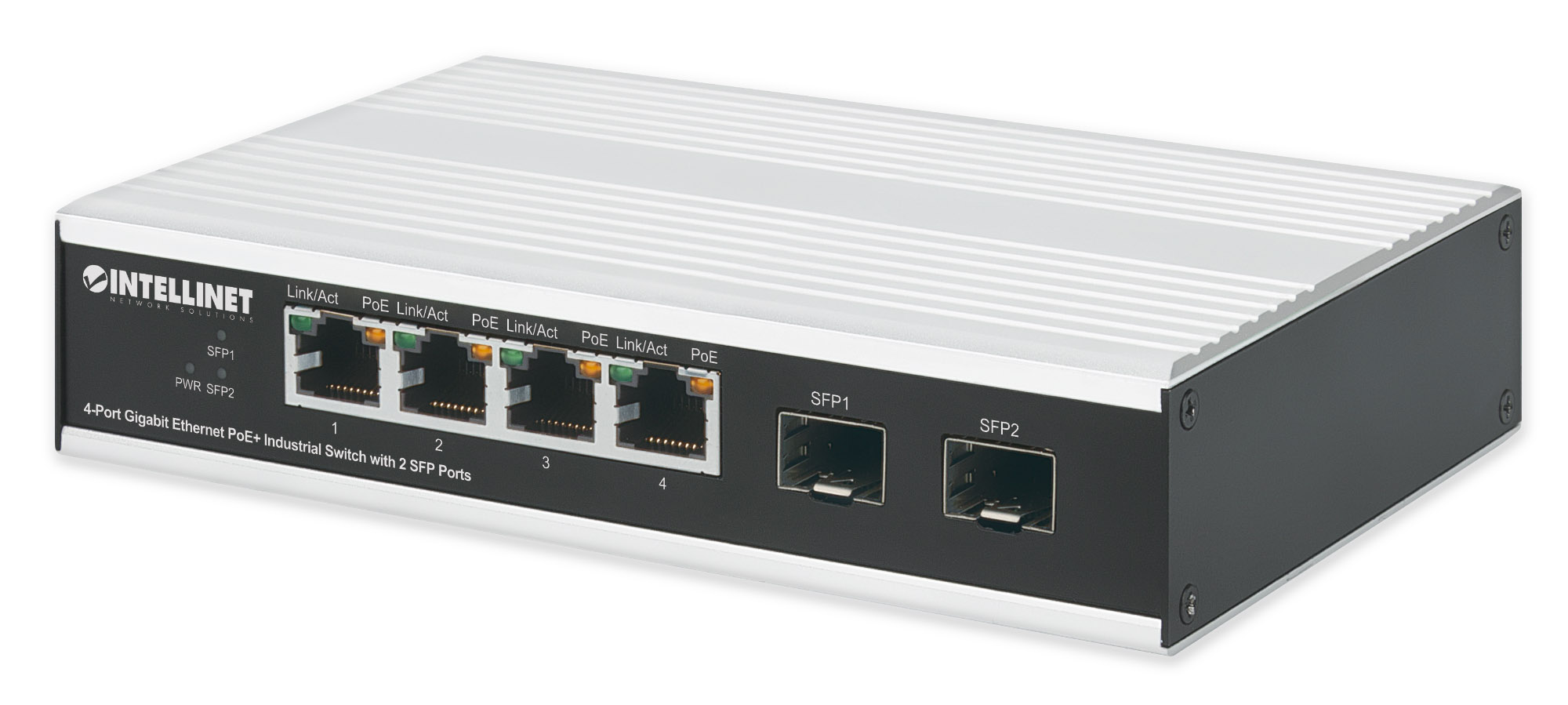

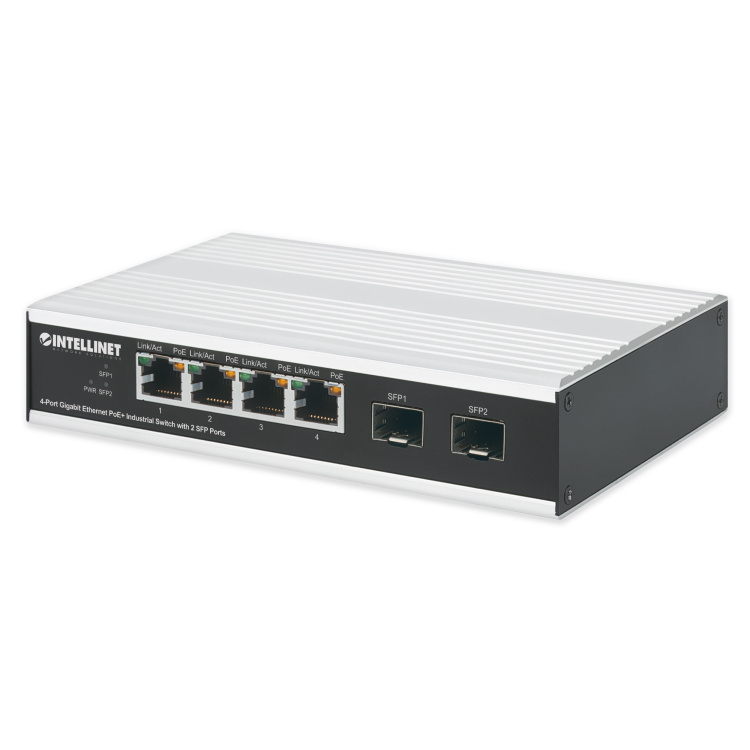

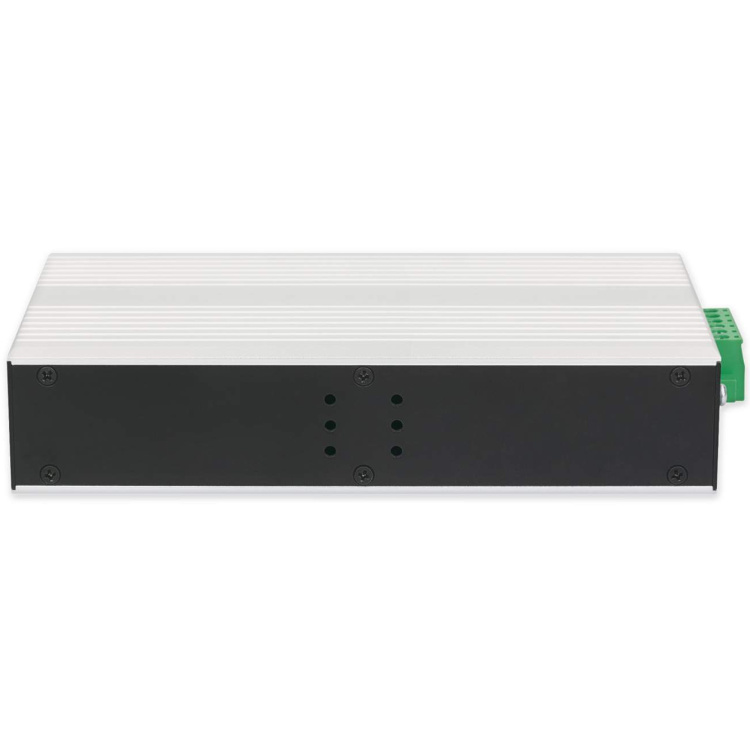

The Intellinet 4-Port Gigabit Ethernet PoE+ Industrial Switch with 2 SFP Ports is a rugged and high-performance networking solution designed for industrial environments. Featuring 4 Gigabit PoE+ ports, it delivers power and data to PoE-enabled devices such as IP cameras and wireless access points, while the 2 SFP ports offer flexible fiber connectivity for long-distance communication. Built to withstand extreme temperatures and harsh conditions, this industrial-grade switch ensures reliable, high-speed data transmission. Ideal for manufacturing, transportation, and telecommunications, the Intellinet PoE+ Industrial Switch provides robust and scalable network performance.
- Provides power and data connections for up to four PoE network devices
- Save installation cost by delivering data and power over existing network cables
- IP40 slim-type metal housing to withstand harsh industrial conditions
- Wide operating temperature: -40 – 75℃ (-40 – 167°F)
- Option for DIN-rail installation
- 10/100/1000 auto-sensing ports that automatically detect optimal network speeds
- Two small form-factor pluggable GBIC module slots (SFP)
- IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
- Power output up to 30 watts per port
- PoE power budget of 120 watts (depending on the power supply used)
- Two redundant DC inputs (44 – 57 V) with I/O terminal block
- Power failure alarm (one-way relay output, current load capacity 1 A @ 24 V DC)
- Port surge protection up to 6 kV
- Grounding point protects equipment from external electrical surges
- Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32) and vibration (IEC 60068-2-6)
- 12 Gbps switch fabric
- Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras, etc.)
- Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
- Auto-MDIX and NWay auto-negotiation support on all RJ45 ports
- Supports 4k MAC address entries with Auto-learning and Auto-aging
- Supports jumbo frames up to 9.6 kBytes
- Store and forward switching architecture
- Full/half duplex operation
- IEEE 802.3x flow control for full duplex
- LEDs for power, link/activity, PoE and SFP
- Fanless design for silent operation
- Requires additional industrial power supply (not included)
- Fully NDAA-compliant
- Three-year warranty
