The Intellinet Media Converter SC Singlemode Gigabit Ethernet WDM Bi-Directional is a high-performance networking solution designed to extend your network over long distances using singlemode fiber. Featuring WDM (Wavelength Division Multiplexing) technology, this media converter allows for bi-directional data transmission on a single fiber strand, maximizing efficiency. Ideal for connecting remote network devices, it supports Gigabit Ethernet speeds for fast and reliable data transfer. Perfect for data centers, telecommunications, and enterprise networks, the Intellinet Media Converter ensures seamless integration of copper and fiber networks while delivering dependable, long-range connectivity.
- Fiber SC-type dual-wavelength single-mode port connects over distances of up to 20 km (12.4 miles)
- Must be used with Gigabit Ethernet WDM Bi-Directional Single Mode Media Converter, model 545068
- Data transfer rate: 10/100/1000 Mbps
- WDM (wavelength division multiplexing) technology utilizes only one strand of fiber to transmit data on separate receive and transmit wavelengths
- Wavelengths: receive (RX), 1310 nm; transmit (TX), 1550 nm
- One 10/100/1000Base-TX RJ45 port, maximum distance 100 m / 300 ft.
- RJ45 port with Auto MDI/MDI-X support

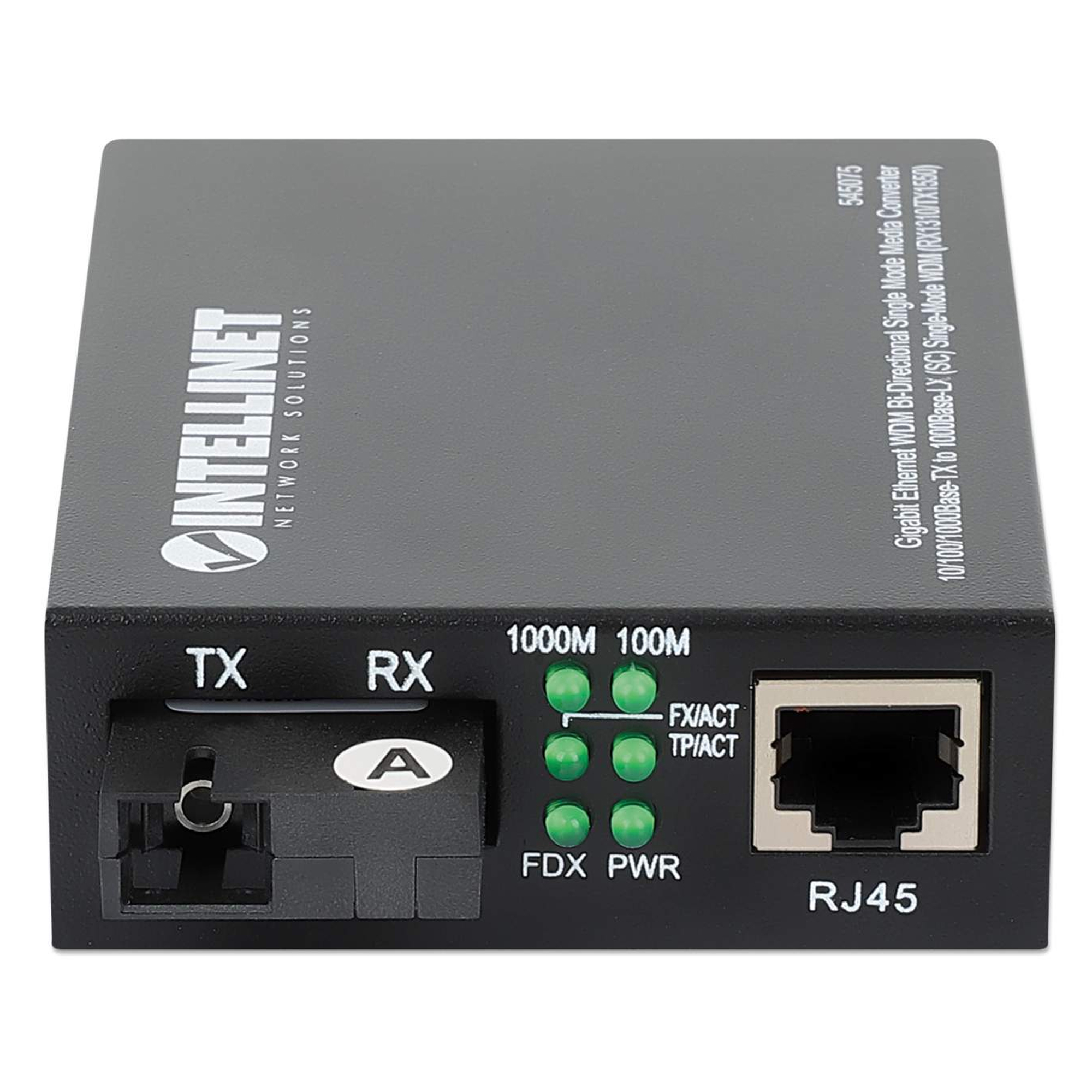

- Status LEDs for easy monitoring of device status
- Supports jumbo frames up to 9 kBytes
- Functions as a stand-alone converter or can be used with the 14-slot Media Converter Chassis, model 507356

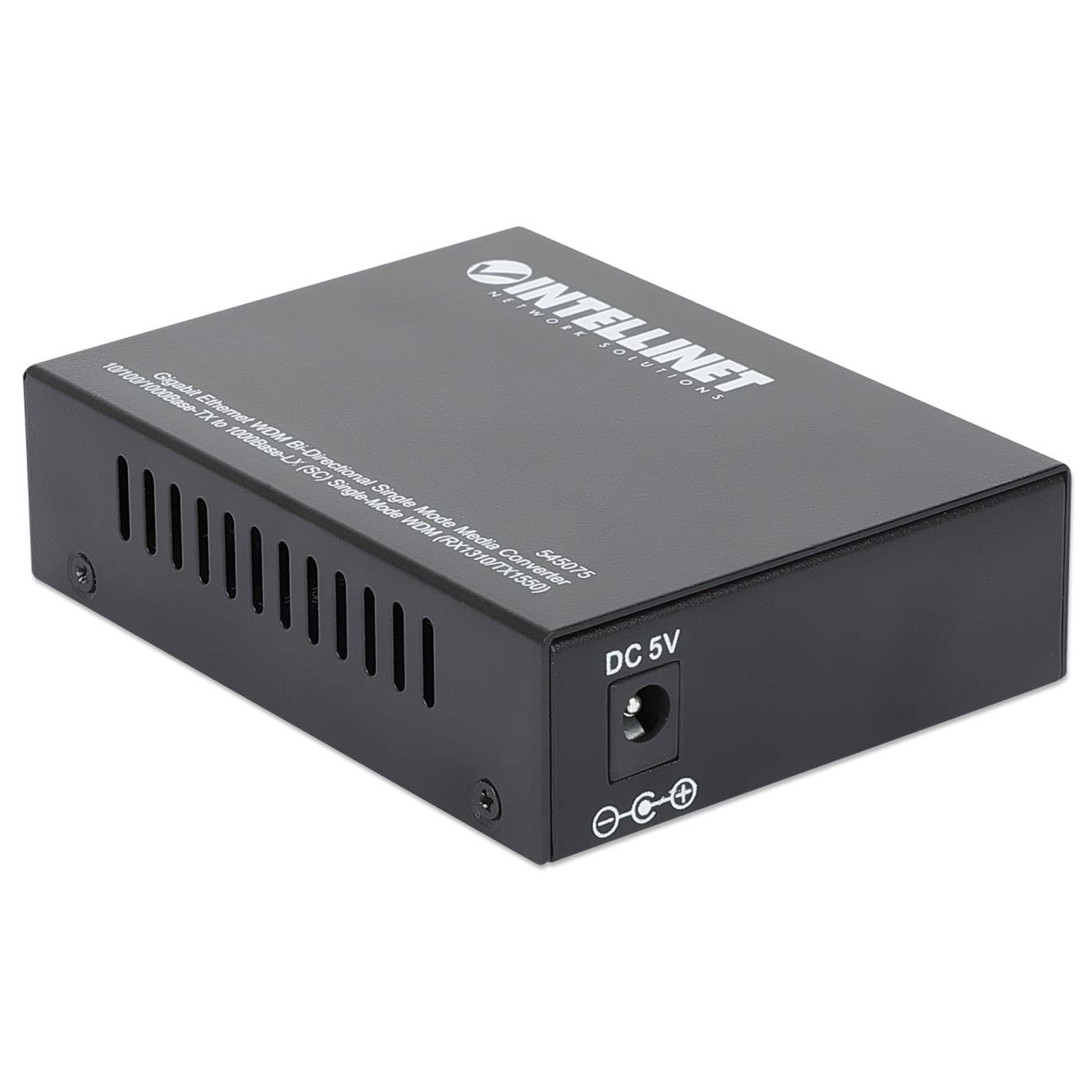

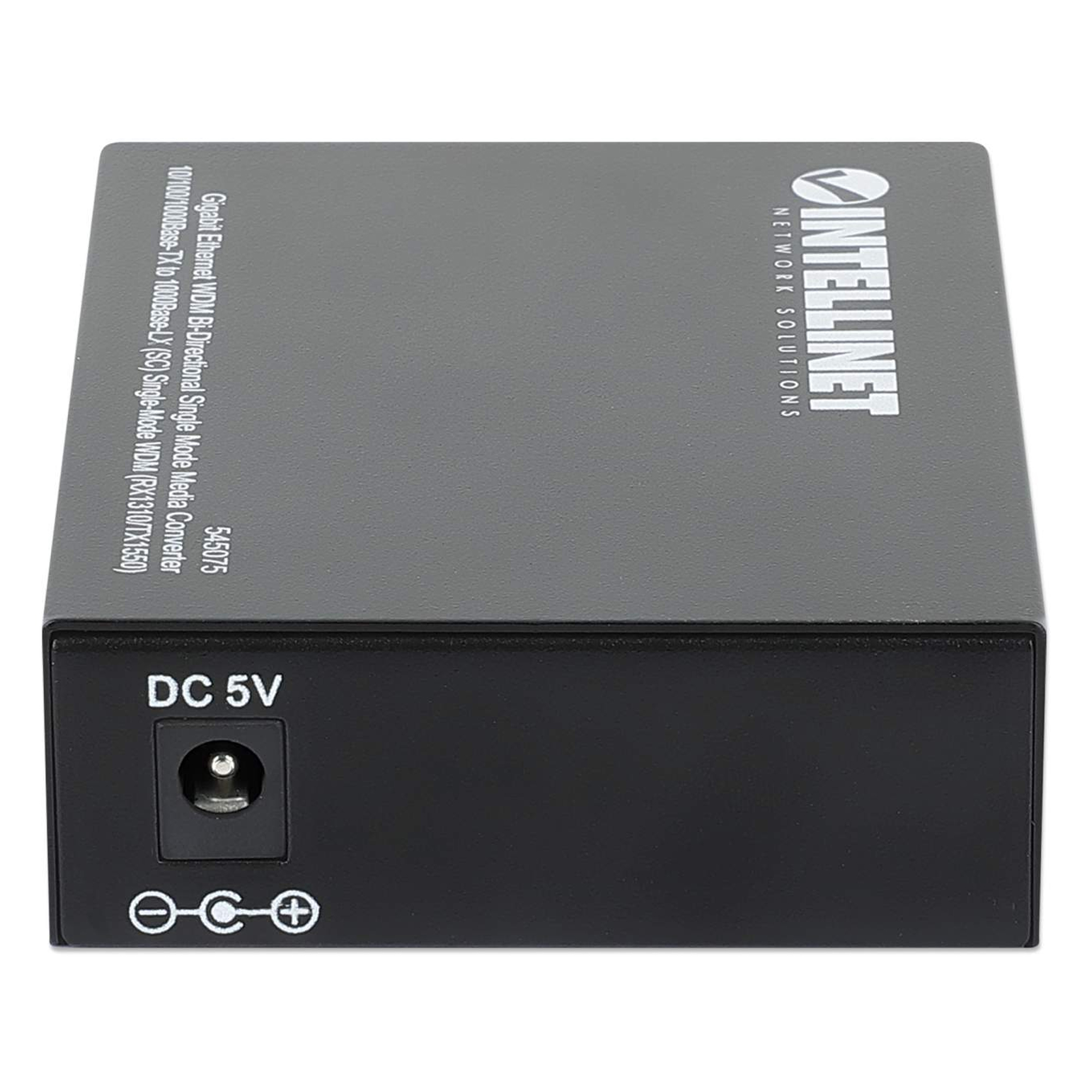

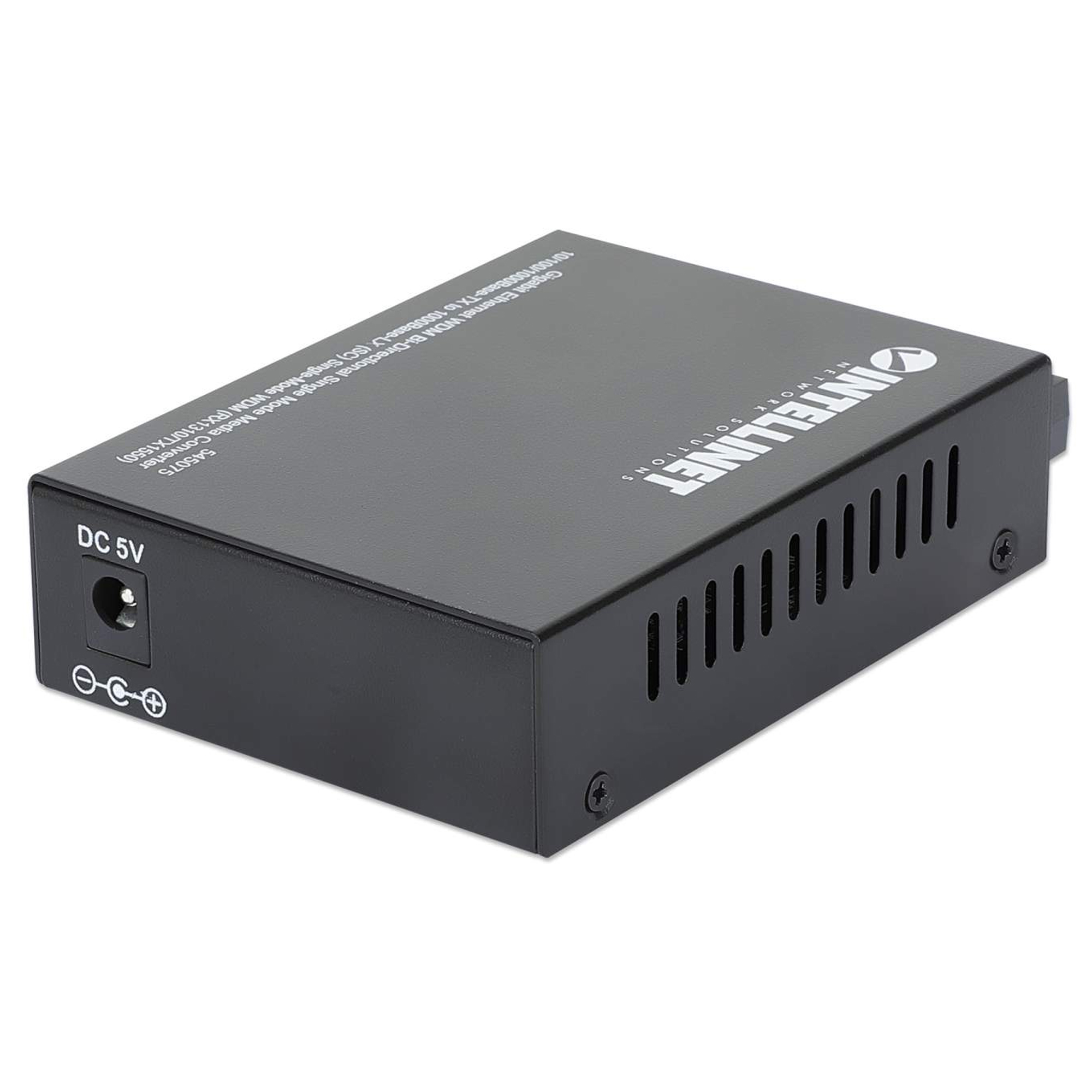

- External power adapter, 5 VDC
- Fully NDAA-compliant
- Three-Year Warranty
