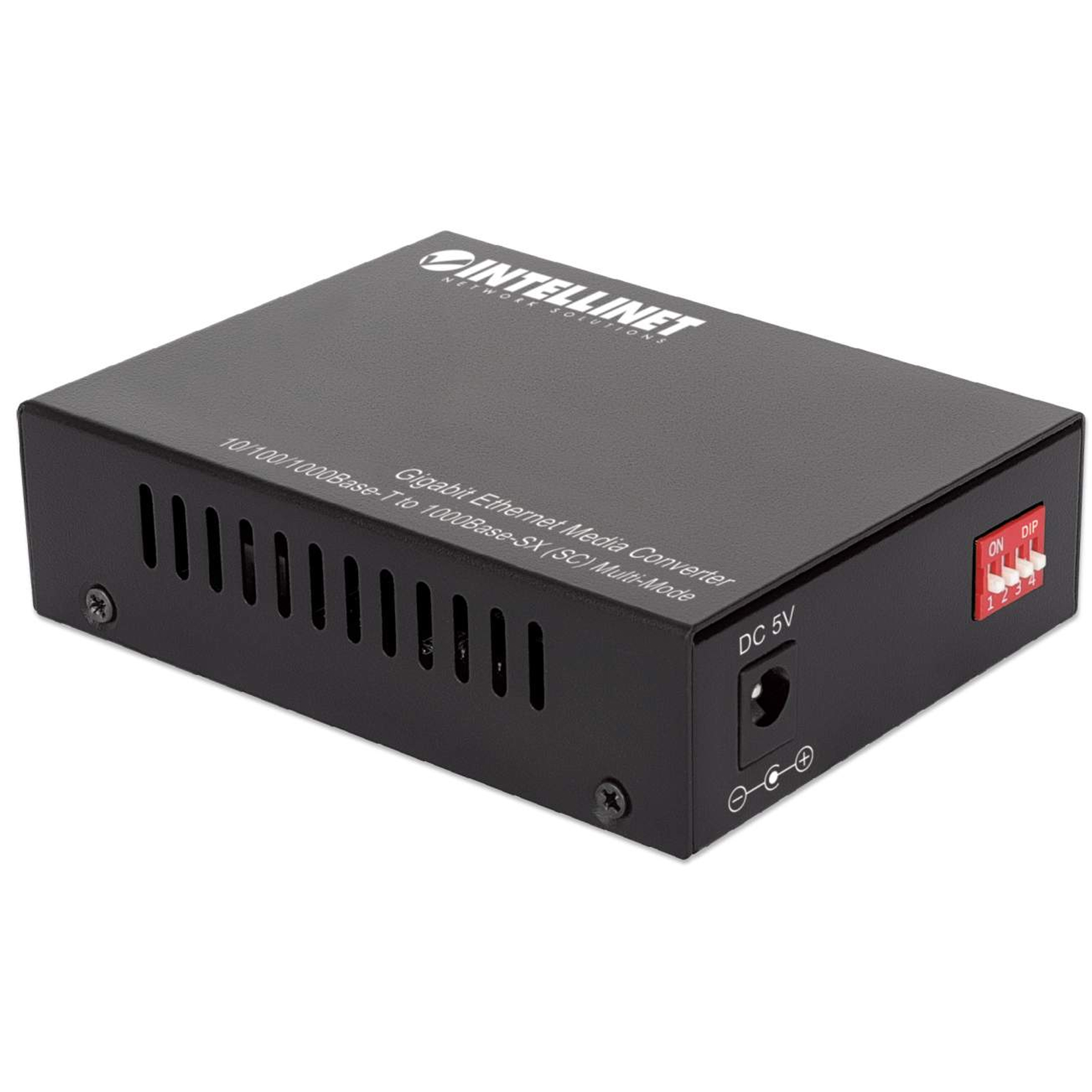

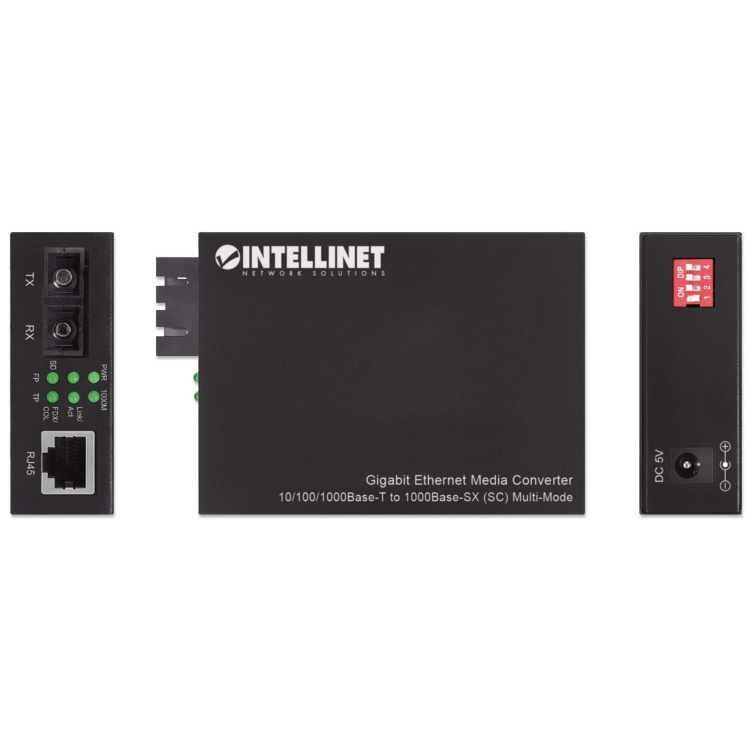

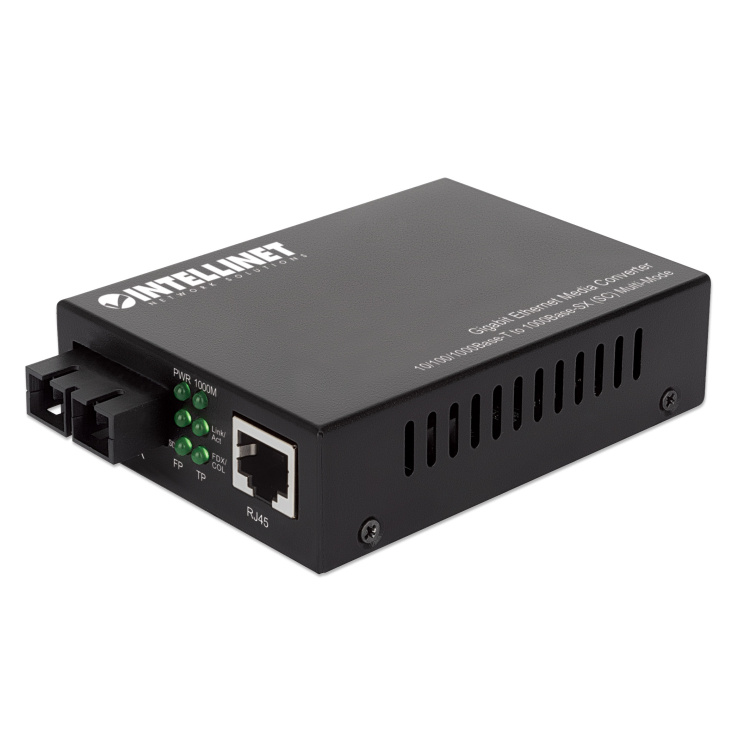

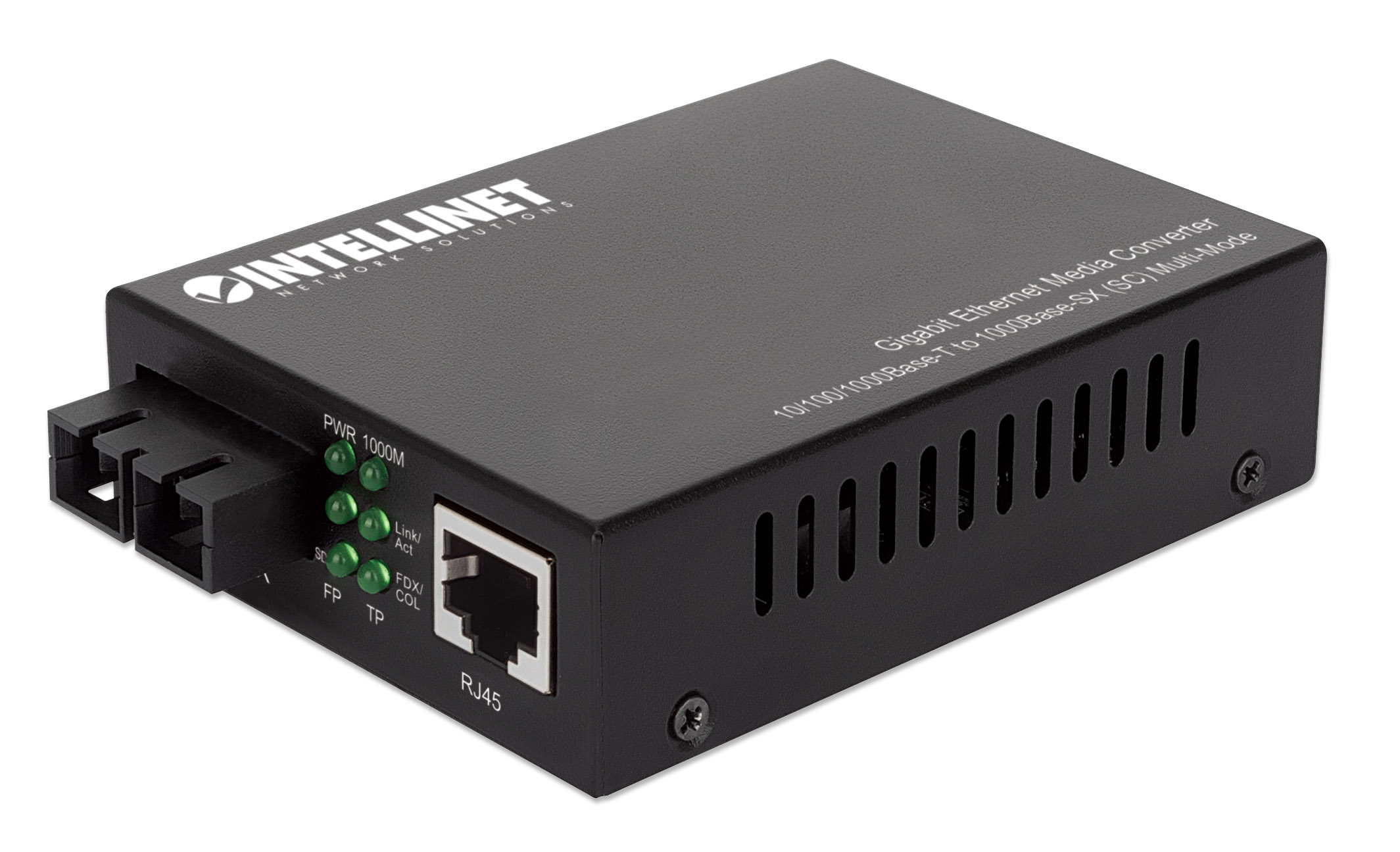

The Intellinet Media Converter SC Multimode 10/100/1000 Base-T to 1000 Base-SX is a high-performance solution designed to convert Ethernet signals to fiber optic for extended network connectivity. Supporting data transmission over multimode fiber up to 500 meters (1,800 feet), this media converter ensures fast and reliable Gigabit speeds. It features auto-negotiation for seamless integration with existing network devices, adjusting to 10/100/1000 Mbps as needed. Ideal for data centers, enterprise networks, and telecommunications, the Intellinet Media Converter provides efficient, long-range networking with reliable fiber connectivity.
- One 10/100/1000 RJ45 port supporting a maximum distance of 100 m (300 ft.)
- One 1000Base-SX fiber SC multi-mode port supporting a maximum distance of 550 m (1,800 ft.)
- Supports full-duplex and half-duplex modes with autonegotiation
- Link Fault Passthrough (LFP) function for easier network maintenance
- QoS (Quality of Service) bandwidth management
- IEEE 802.1Q VLAN tagging compliant
- Cut-through and store-and-forward switching architecture
- Wavelength: 850 nm
- Supports jumbo frames up to 9.2 kBytes

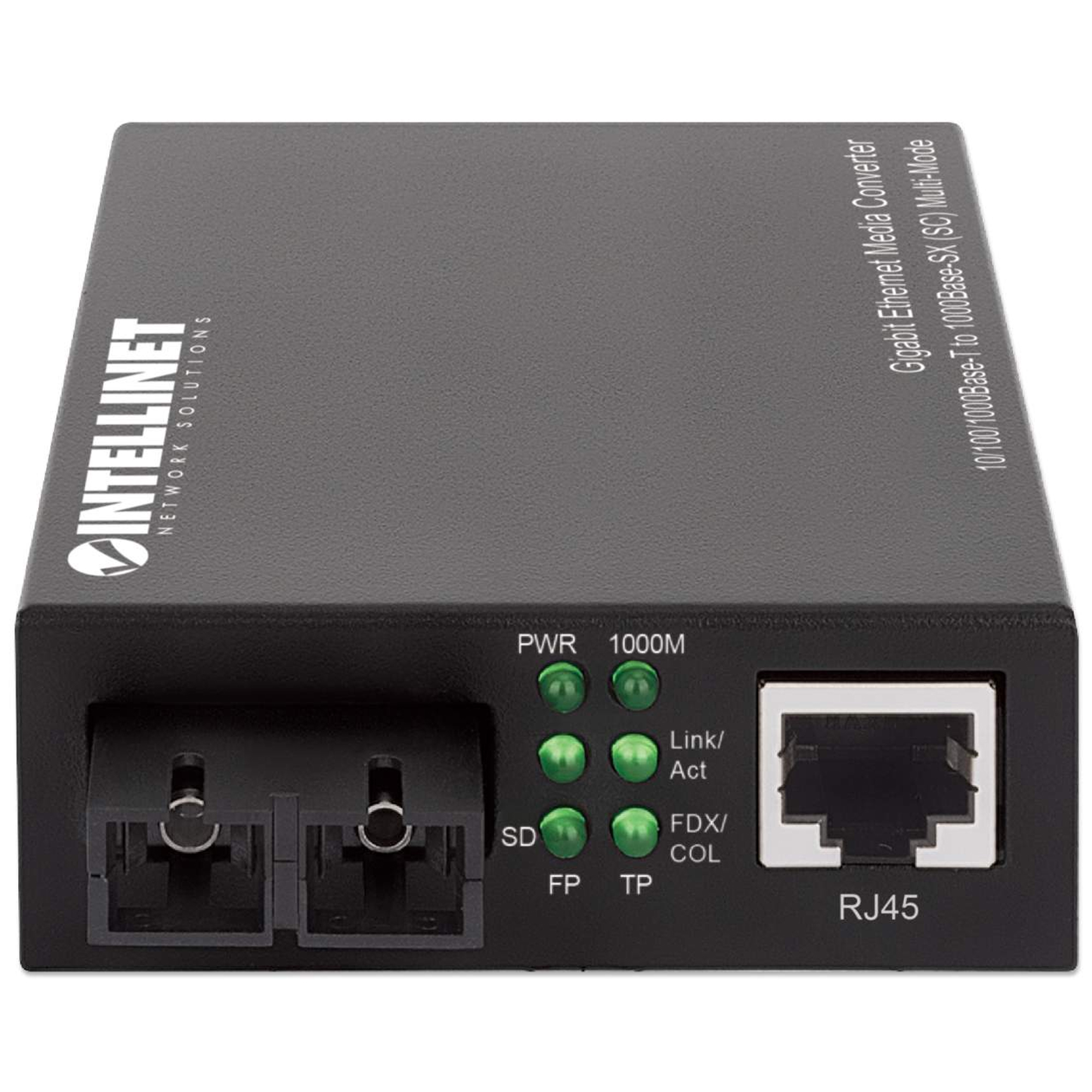

- Status LEDs for power and Link/TX on both ports

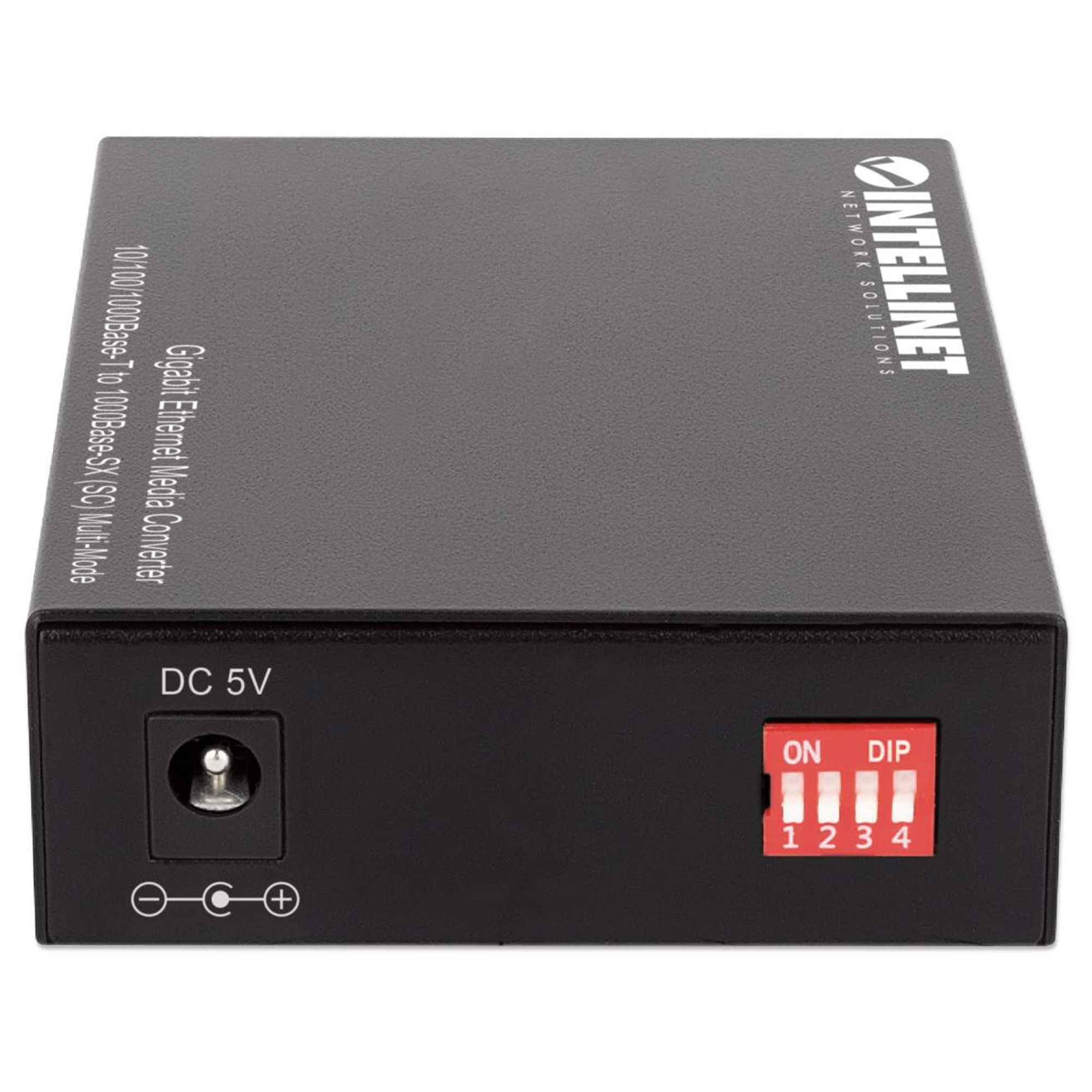

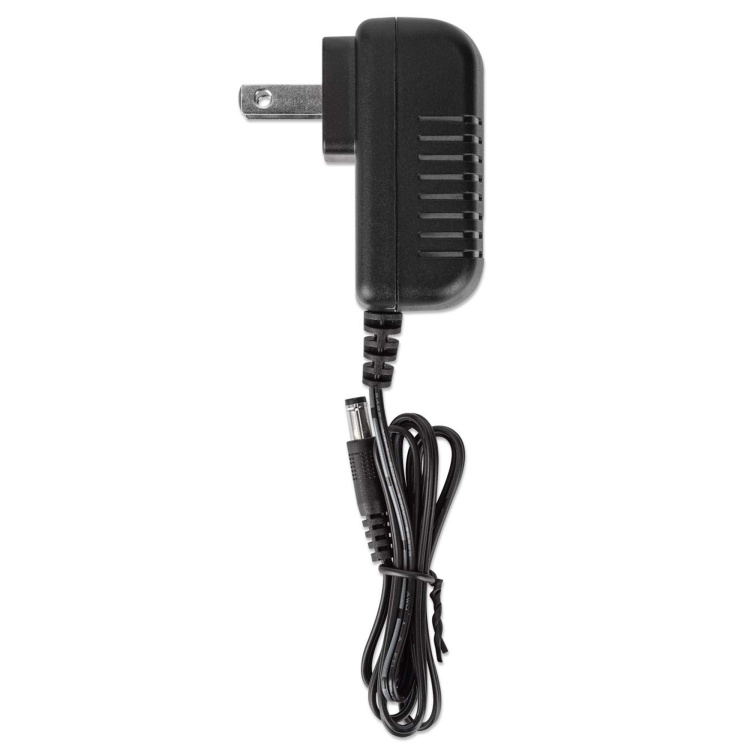

- External 5 VDC power adapter
- Functions as a stand-alone converter or can be used with the 14-slot Media Converter Chassis, model 507356
- Fully NDAA-compliant
- Three-year warranty
