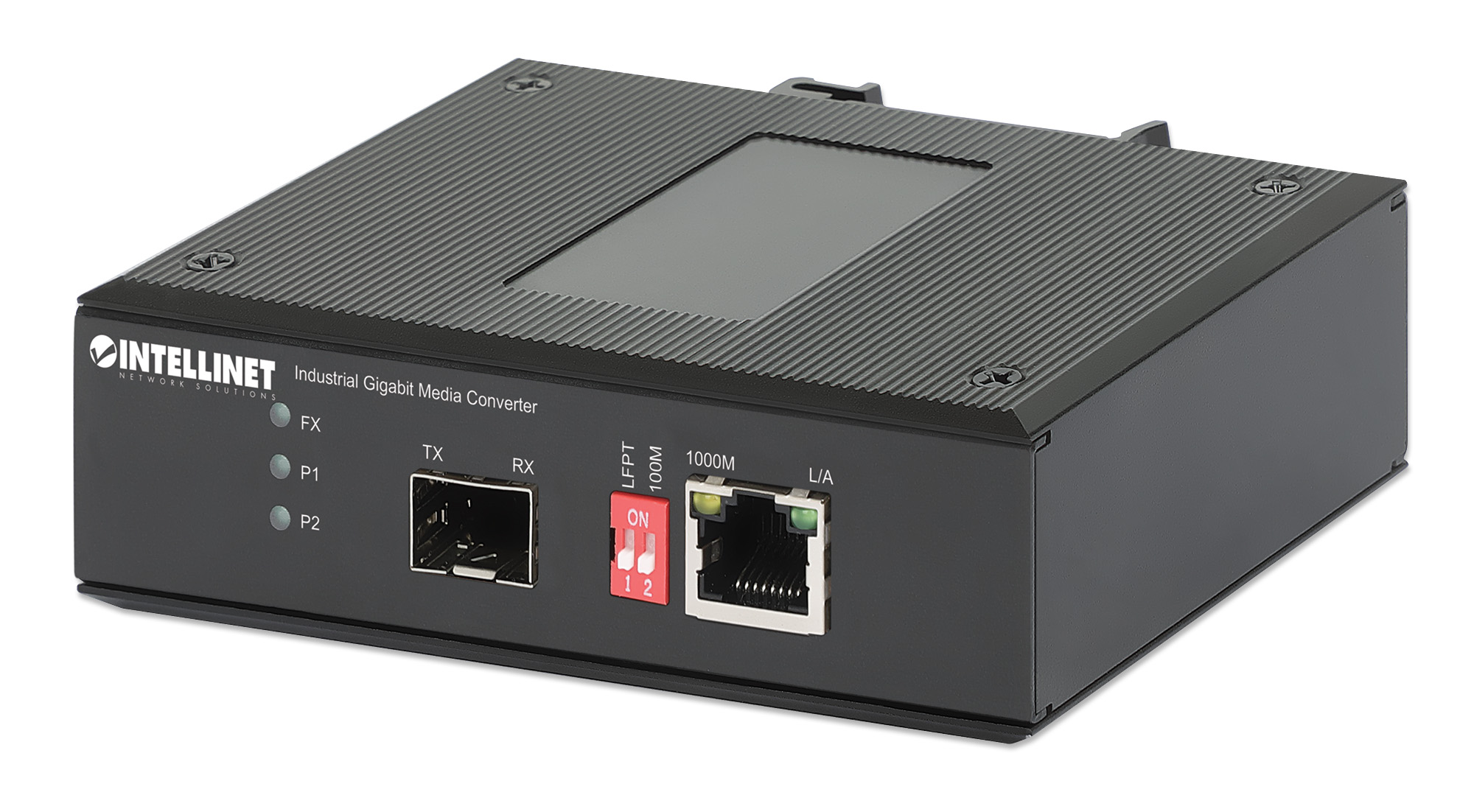

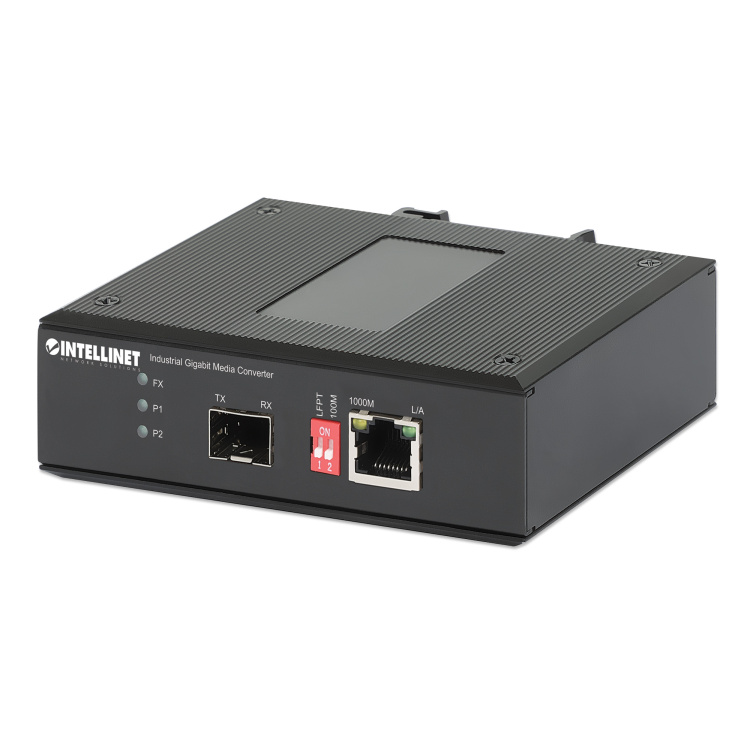

The Intellinet Industrial Gigabit Ethernet Media Converter 10/100/1000 to Unloaded SFP Slot is a rugged and high-performance networking solution designed for harsh environments. It converts copper-based Ethernet connections to fiber, supporting Gigabit Ethernet speeds (10/100/1000 Mbps) for seamless data transfer over long distances. With an unloaded SFP slot, it offers flexibility for selecting the appropriate SFP module (sold separately) for your network needs. Operating on a wide power range of 12 to 56VDC, this media converter is perfect for industrial applications, telecommunications, and enterprise networks, providing reliable, long-lasting connectivity in demanding conditions.
- One 10/100/1000 RJ45 port supporting a maximum distance of 100 m (300 ft.)
- One SFP port for 1000Base-X optical transceiver modules and distances up to 120 km (75 mi.)
- IP40 slim-type metal housing to withstand harsh industrial conditions
- Option for DIN-rail installation
- Two redundant DC inputs (12 – 56 V) with terminal block
- Requires industrial power supply (not included)
- Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32) and vibration (IEC 60068-2-6)
- Supports full-duplex and half-duplex modes with autonegotiation
- Suitable for extreme operating temperatures of -40 to 85ºC (-40 to 185ºF)
- Supports 8k MAC address entries with Auto-learning and Auto-aging
- Buffer memory of 1 MByte
- Supports jumbo frames up to 10 kBytes
- Fanless design for silent operation
- Fully NDAA-compliant
- Three-year warranty
